Feature：
1.Linear guide tracks provide large loading capacity.
2.Double-net Ball screw from German offer high working accuracy.
3Restoring functional enable the machine continue to work after sudden stop.
4.Square guides on axis Y are optional for high accuracy request in large size materials.
|

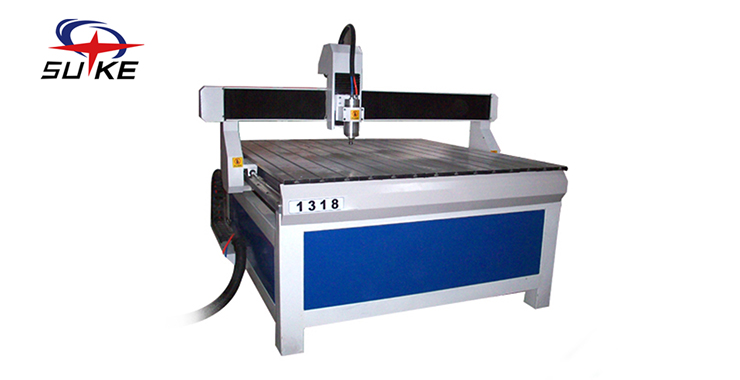

Model |
SK-1212/SK-1318/SK-1224 |
|
Working area |
1200*1200 /1300*1800/1200*2400 mm |
|
Machine structure |
Steelstructure lathe bed, T-slot table of sectional materials |
|
Working holding |
By clamps |
|
Precision |
0.07 mm |
|
Position accuracy |
0.02 mm |
|
Repeatability accuracy |
0.02 mm |
|
Idling speed |
6000 mm/min |
|
Working speed |
4500 mm/min |
|
Spindle |
1.5 kw water cooling spindle |
|
Available tools |
φ3.175~φ6 |
|
Command code |
G code (*.nc, *.mmg,*.u00,etc.),*.eng |
|
Control system |
NcStudio system |
|
Compatible software |
Compatible with any software generating G code file in Window 98/XP/7 |
|
Optional: Vacuum table;air cooling spindle;servo motor;DSP handle-held DSP;Rotary |
|
