Applicable Materials
Plastics,, electroplating products, coated products, ABS, LCD screen, ceramics, glass,silicon etc.
Applicable Industries:
Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Features:
1.High laser beam quality, thin laser spot, ultrafine marking resolution.
2.UV laser at 355nm provide a small-size spot and a large depth of focus, marking by short wavelength laser interrupts molecular chains of materials, can greatly reduce the mechanical deformation and temperature distortion if materials.
3.Galvanometer scanning system id compact and with high marking speed.
4.It is a cold light, mainly used for super precision marking and engraving, particularly suitable for food, pharmaceutical packaging material marking, micro porous, high-speed dividing for glass, complex graphics wafer cutting in silicon materials, etc.
5.Simple operation, no consumables, low energy consumption. More precision and clear marking, and irreplaceable advantages in areas with higher requirements in depth, smoothness and fineness, which can fully meet the needs of industrial continuous work.

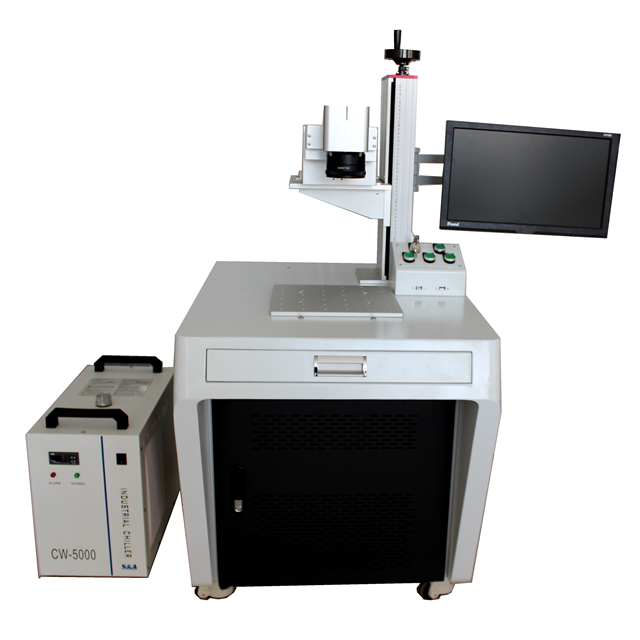

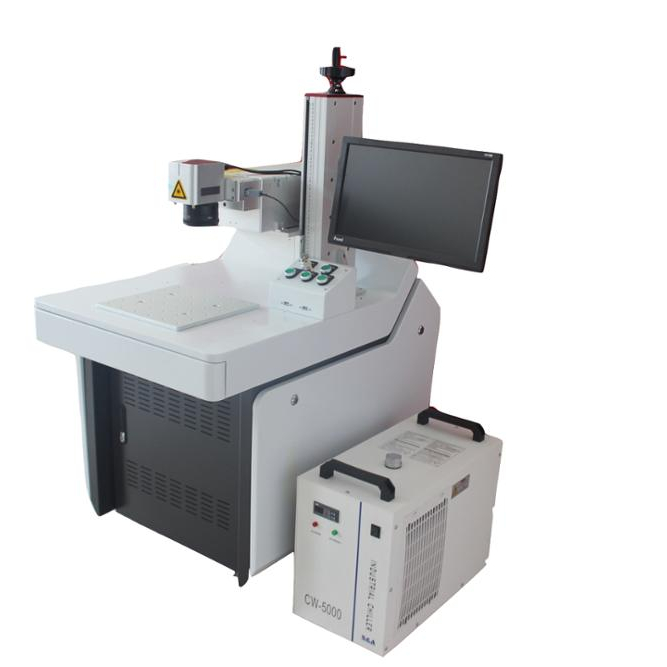

UV laser marking machine
Model |
UV-3W/5W |
Laser type/wave length |
355nm |
Laser output power |
3W/5W |
Beam quality |
<1.1 |
Marking speed |
250 characters per second |
Repeated accuracy |
±0.001mm |
Working area |
110×110mm or 150×150mm ( adjustable ) |
Total power consumption |
<1.5 KW |
Power supply |
220V/50-60Hz |
Laser Source |
Raycus, IPG optional |
Control system |
JCZ-Ezcad |
Support format |
PLT,BMP.DXF,JPG,TIF,AI etc |
Minimum character |
0.1mm |
Minimum line width |
0.015mm |
Life of the laser machine |
100,000 hours~150000 hours |
Cooling system |
Water Cooling |
Control interface |
Standard USB |
Overall dimensions |
800mm×1025mm×1500mm |
Sample Photo:
