Main Features:
1. High precision and fast speed. Marking depth is controllable optionally.
2. Wide application. It can mark most non-metal materials.
3. The marking lines are clear, it can withstand heavy wearing.
4.Using CO2 glass tube, which is economical.
5.Dedicated industrial-control computer,is adaptable and has high capacity of antijamming,working stably to enable continuous and stable operation all day long .
6. Adopting red dot positioning system to make an accurate position to avoiding Wasting material.
Main Applications:
Leather, wood, textiles, plastics, acrylic, glass, crystal, stone, MDF, dual-color board, organic glass, paper, jade, agate, non-metals etc.
|
Model |
SK-C100W |
|
Laser power |
90W/100W/150W |
|
Supports graphical format |
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
|
Laser Type |
CO2 Glass tube |
|
Laser Tube Brand |
Reci Tube/CDWG/Yongli choosable |
|
Galvo System |
High quality Galvo scanning system |
|
Motion System |
Stepper motor/Servo motor |
|
Laser Wavelength |
1064nm |
|
Control Software |
MarkingMate |
|
Marking Speed |
0-7000 mm/s |
|
Marking depth |
< 3mm |
|
Galvanometer Size |
200*200, 300*300 ,600*600mm (optional) |
|
Whole machine power |
<1500W |
|
Cooling way |
Water cooling,chiller |
|
Operating voltage |
110/220V ± 10% /,50/60HZ |
|
operating temperature |
15 ° C - 35 ° C |
|
Weight |
80KG |
|
Dimensions |
600H * 200W * 700L (mm) |
|
Optional parts |
Rotary,2D 3D platform,fume exhaustor etc |

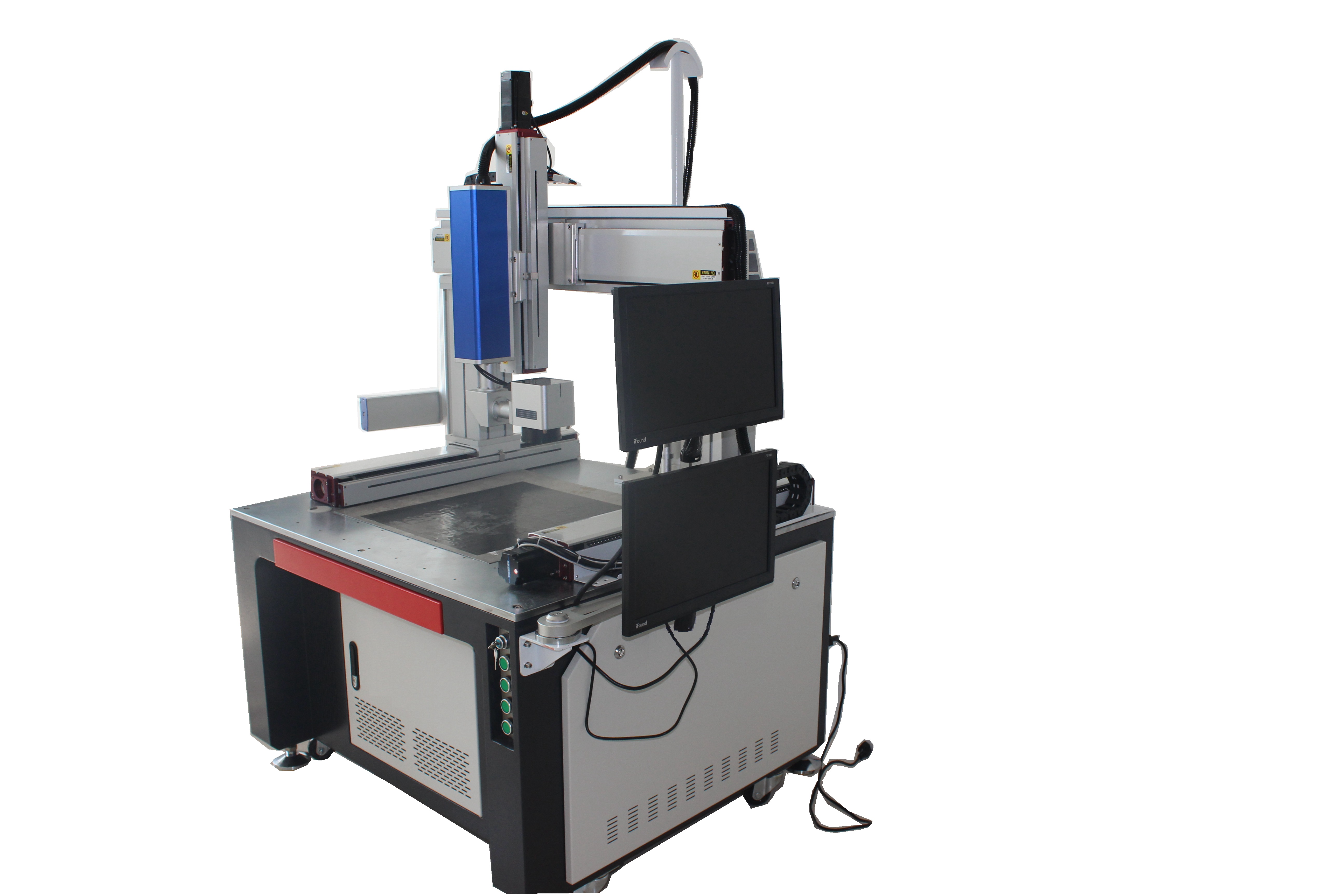

Sample Photo:
