Main Features:

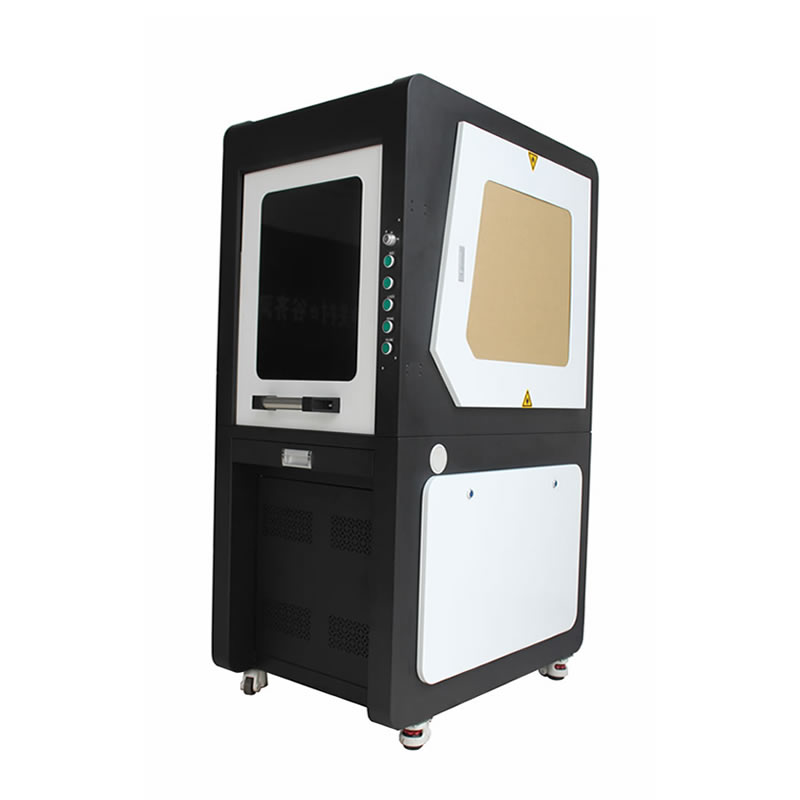

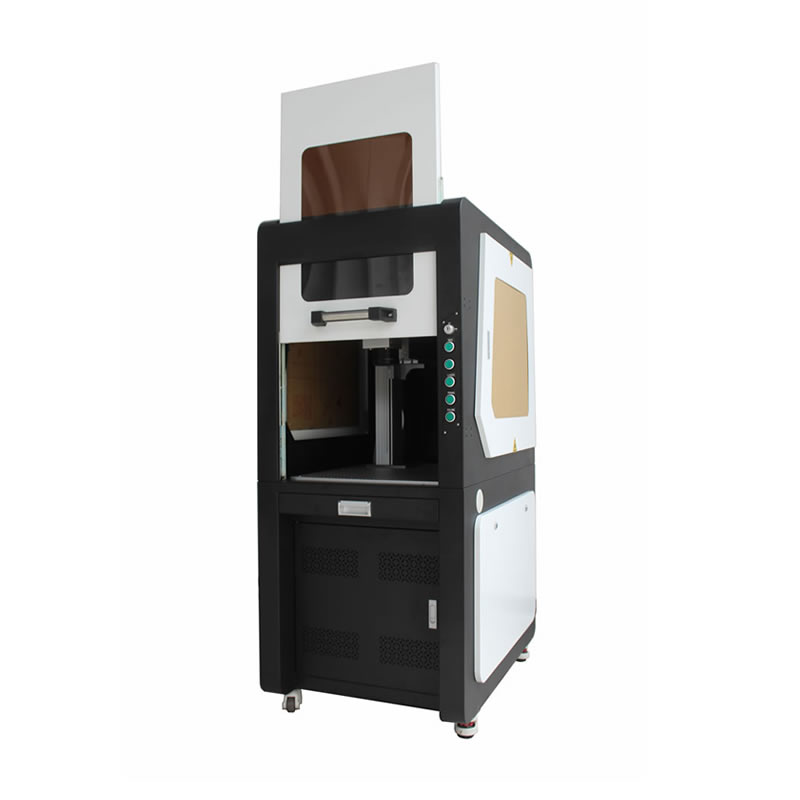

1. full enclosed type fiber laser marking machine make it safe when marking,and it has modern and beautiful design.
2. Adopt high quality parts such as CHINA Raycus fiber laser source and use Beijing use EZCAD software.
Applicable Industries:
Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Technical Parameters:
|
Specification |
|
SK-F20 |
SK-F30 |
SK-F50 |
SK-F100 |
|
Wave length of laser |
1064nm |
|
|
|
|
|
Laser repetition frequency |
20kHz~100kHz |
|
|
|
|
|
Laser power |
|
20W |
30W |
50W |
100W |
|
Marking scope |
110*110mm/150*150mm/175*175mm/200*200mm/300*300mm optional |
||||
|
Laser sources |
Fiber module |
||||
|
Laser Head |
Scanning head |
||||
|
The minimum focus facula diameter |
20μm |
||||
|
Minimal character |
0.01mm |
||||
|
Marking speed |
≤7000mm/s |
||||
|
Repeated accuracy |
0.0025mm |
||||
|
Cooling ways |
Force-air Cooling |
||||
|
Power supply |
220V/ 50Hz/2kVA |
||||
|
Process Material |
All kinds of metal and part of Non-metal Materials |
||||
|
Support format |
PLT, BMP, DXF, JPG, TIF, AI etc |
||||
|
Package |
Standard Crate for export |
||||
