Main Features:

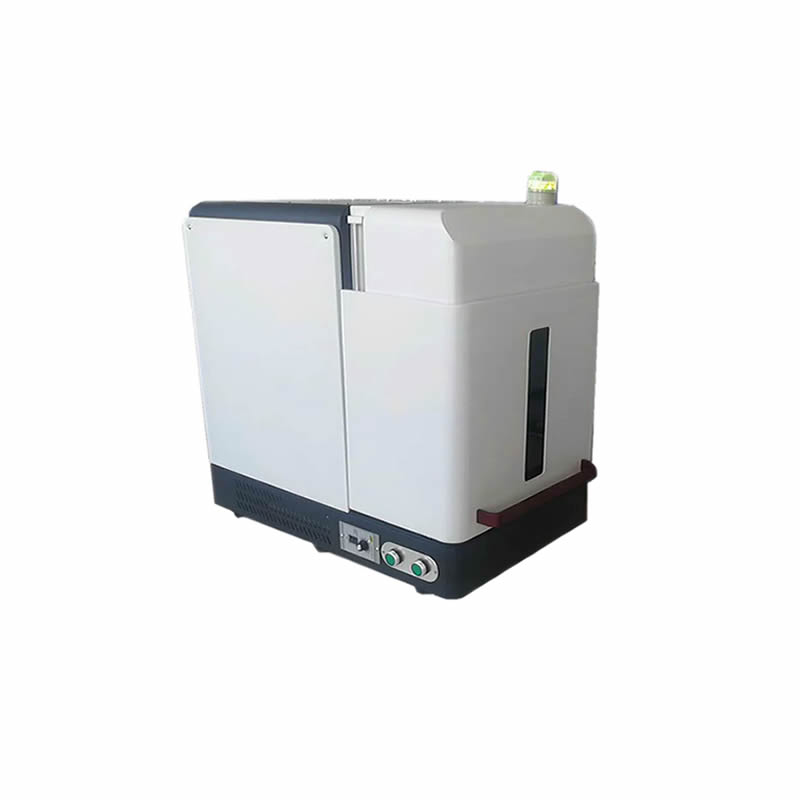

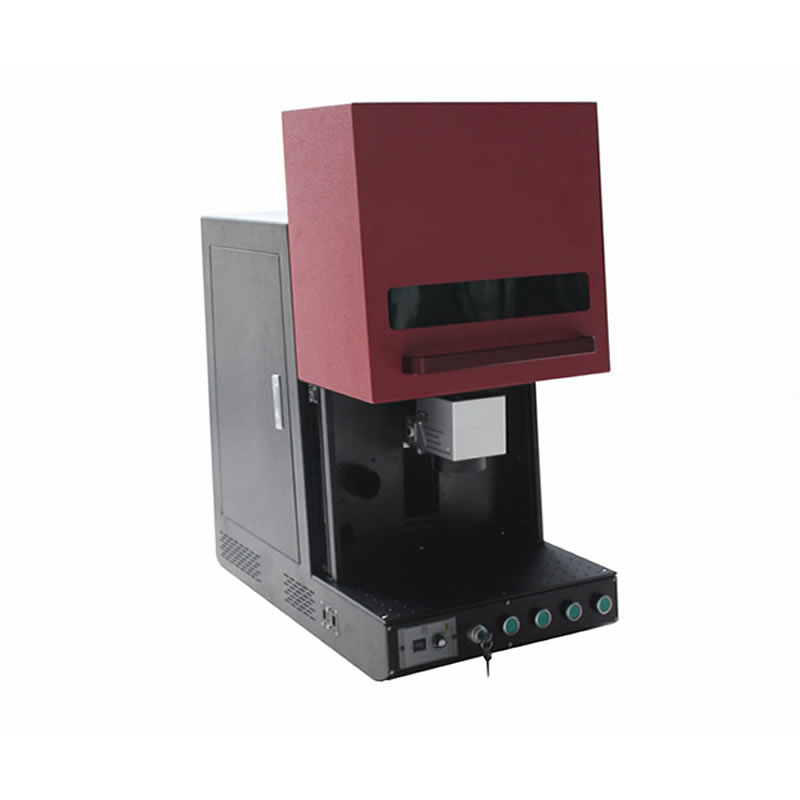

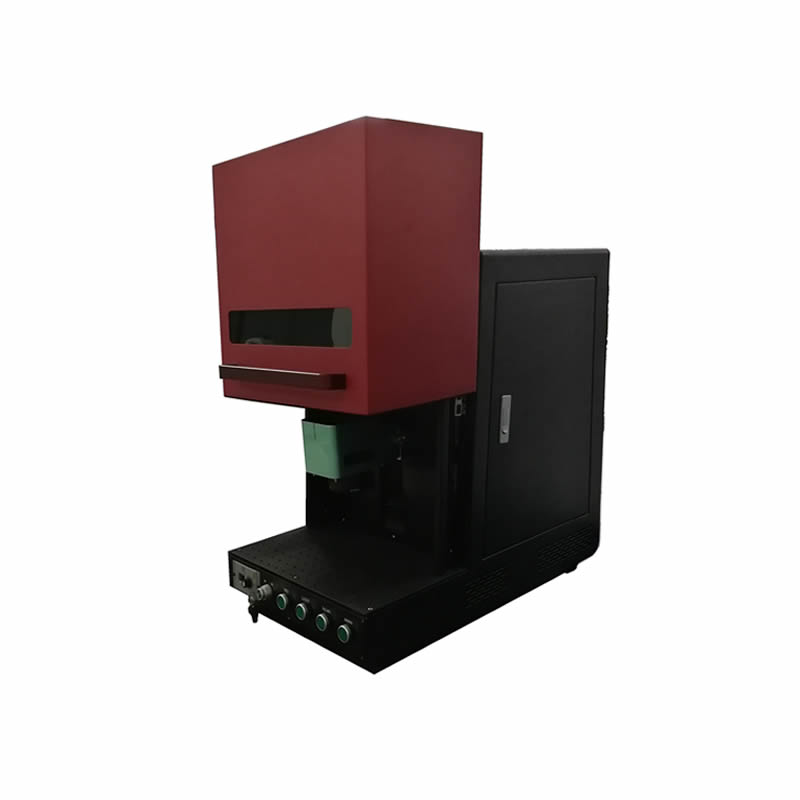

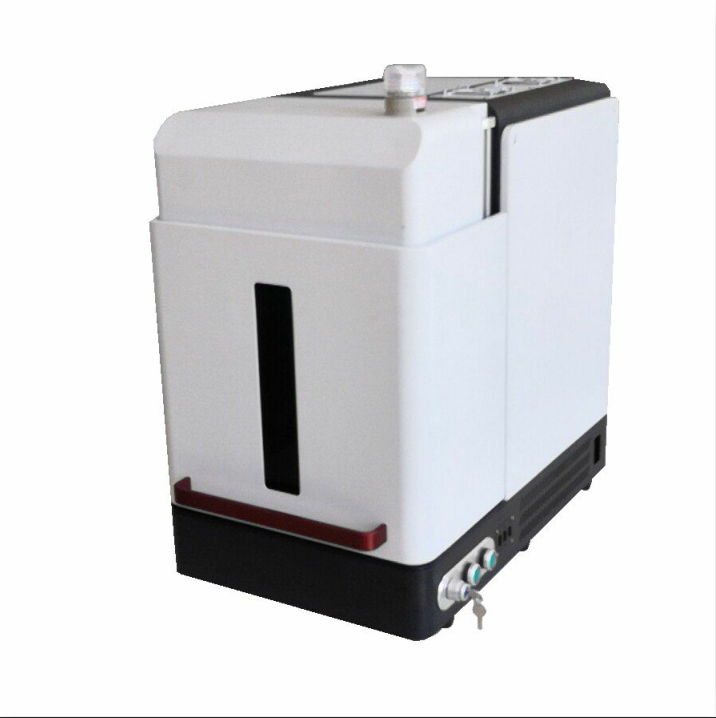

1. Fully enclosed safety protection system, avoid material waste and accidental injury caused by misuse;
2. High electro-optic conversion rate, high beam quality, very small spot size, enabling ultra-fine marking;
3.The nonlinear crystal has long service life, stable operation, high positioning accuracy, high working efficiency and modular design;
4.The device is small in size, light in weight and easy to move;
5. Effectively reduce the damage caused by smoke generated during work;
6. Red light preview: show the marking position before laser
7.Long service life, small size, no need for a huge water cooling system, just a simple air cooling. It can work normally even in harsh environments such as shock, vibration, high temperature or dust.
8.Avoid dust contamination to the optical lens or contamination of the fiber end face
9.Highly integrated structure, no optical pollution and power coupling loss, air cooling, high efficiency, 100,000 hours long life
Technical Parameters:
Specification |
|
SK-F20 |
SK-F30 |
SK-F50 |
SK-F100 |
Wave length of laser |
1064nm |
|
|
|
|
Laser repetition frequency |
20kHz~100kHz |
|
|
|
|
Laser power |
|
20W |
30W |
50W |
100W |
Marking scope |
110*110mm/150*150mm/175*175mm/200*200mm/300*300mm optional |
||||
Laser sources |
Fiber module |
||||
Laser Head |
Scanning head |
||||
The minimum focus facula diameter |
20μm |
||||
Minimal character |
0.01mm |
||||
Marking speed |
≤7000mm/s |
||||
Repeated accuracy |
0.0025mm |
||||
Cooling ways |
Force-air Cooling |
||||
Power supply |
220V/ 50Hz/2kVA |
||||
Process Material |
All kinds of metal and part of Non-metal Materials |
||||
Support format |
PLT, BMP, DXF, JPG, TIF, AI etc |
||||
Package |
Standard Crate for export |
