Main Features:
1.operation system: windowns xp , windows 7 ,windows 8
2. Support Characters , digital, series NO, Date codes
3. Various types of fonts are supported. Such as TrueType, JSF(Single line font ), DMF(Dot Matrix Font,One-Dimensional bar code, Two-Dimensional bar code , and so on
4 .Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)
5.Common vector images are supported. (ai, dxf, dst, plt…)
6.Flexible variable text : changes the text real time while in laser processing . Excel datasheet is supported.
Applicable industry:
Metal,alloy ,oxide,ABS,epoxy resin, which are widely applying for electronics and communication products,jewelry,automobiles ,integrated circuit chips ,,plastic buttons,IC,computer accessories, industrial bearings,tobacco and military matters, aerospace equipment etc.
Model |
SK-F20/F30/F50 |
Laser power |
20W/30W/50W |
Supports graphical format |
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
Beam quality |
m2 <2 |
Power stability |
(8h) <± 1% rms |
Pulse repetition frequency |
20KHZ ---- 100KHZ |
Power consumed |
<800W |
Minimum line width |
50μm |
Minimum character |
0.3mm |
Laser Wavelength |
1064nm |
Galvanometer Size |
110 * 110mm 150*150mm 200*200mm (optional) |
Whole machine power |
<1500w |
Cooling way |
Air cooling |
Operating voltage |
110/220V ± 10% /,50/60HZ |
Ambient operating temperature |
15 ° C - 35 ° C |
Weight |
80KG |
Dimensions |
600H * 200W * 700L (mm) |
Packing |
plywood wooden packaging |

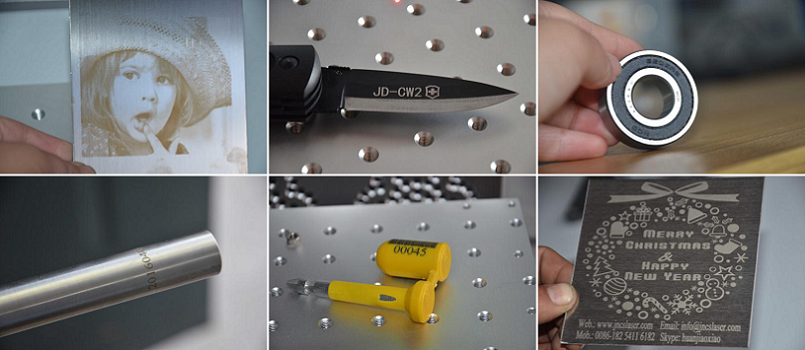

Sample Photo:
