Performance Feature:

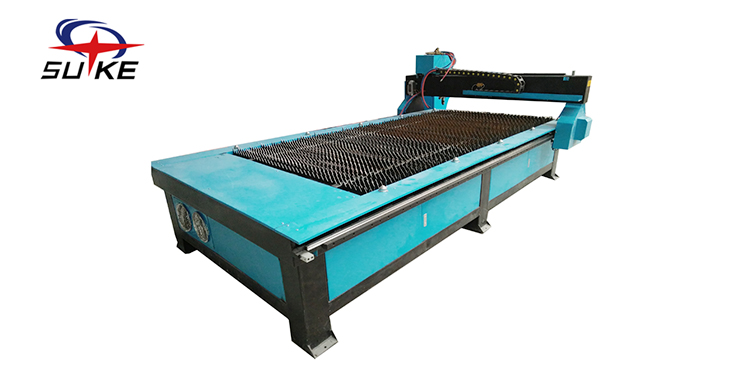

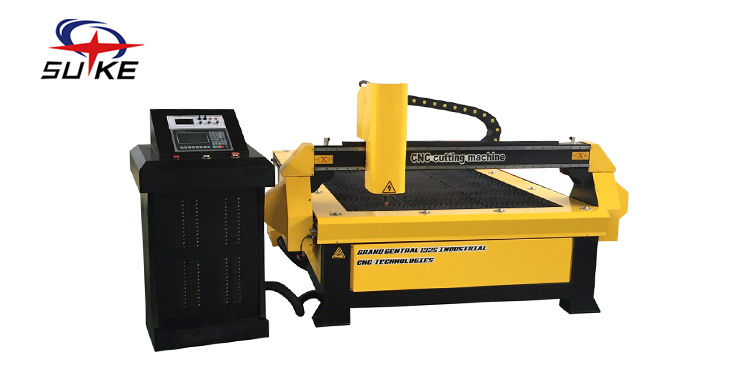

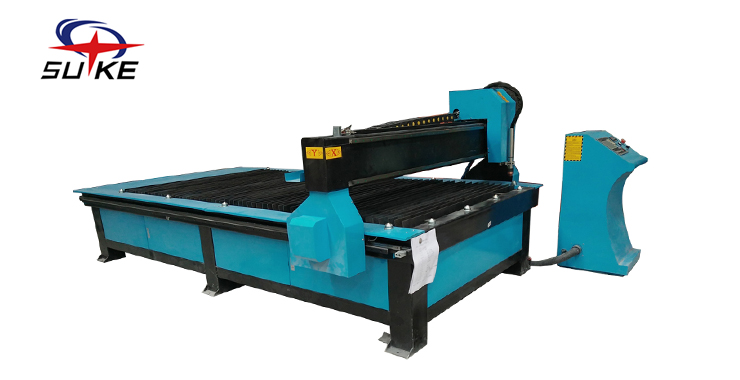

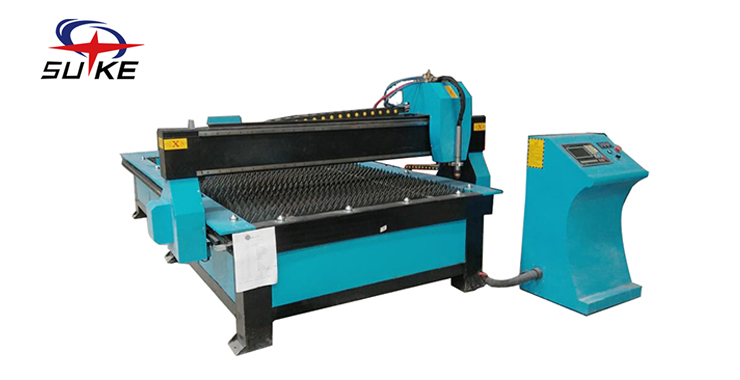

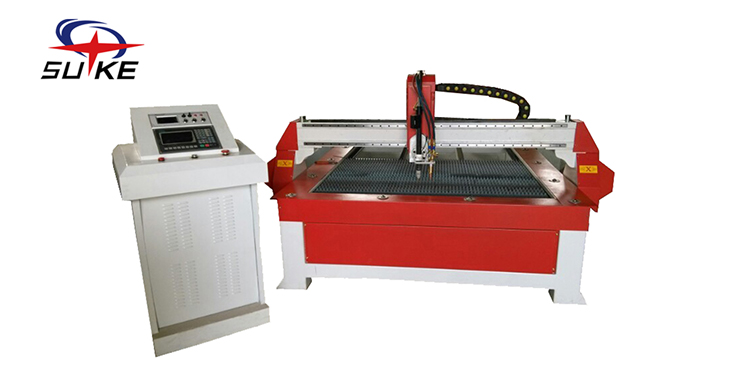

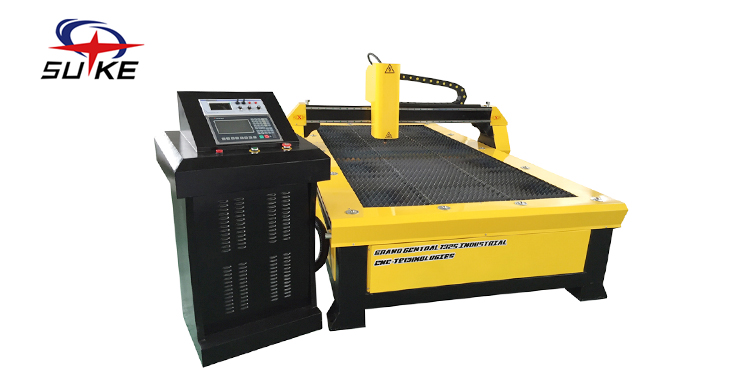

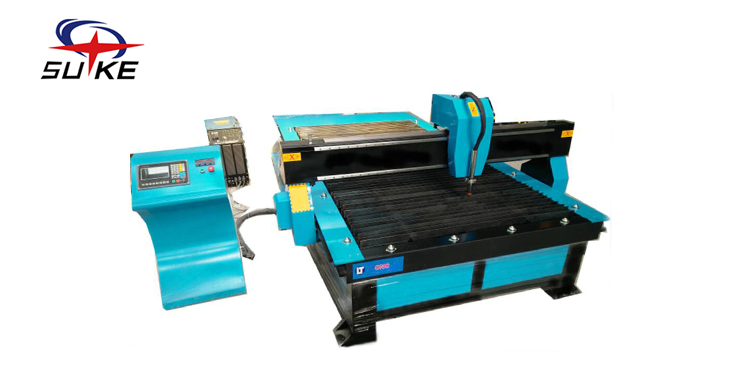

1)The beam of CNC plasma cutting machine adopts light structure design,this structure has good rigidity,light weight,motion inertia small and so on character.
2) The CNC plasma cutting machine has Gantry structure .Y axis adopts double motor double drive and X,Y, X axis adopts double liner guide rail,smooth transmission and high accuracy.
3) The CNC plasma cutting machine is to cut solid light on advertising,word of the metal panel and the groove bottom,and the cutting accuracy is up to standard.
4)With other advertising equipment (vacuum molding machine,cutting machine,engraving machine) format the word processing line,completely solve the traditional manual processing way.Working efficiency improved dozens of times.
5) The cutting piece is small,tidy and no slag off phenomenon.so it avoid the second time to process and correct.
6)The cutting speed and accuracy is high but the cost is low.
7) The CNC plasma cutting machine has high control system,automatic start arc and features steadily.
8)The CNC plasma cutting machine Control system adopts U disk exchange processing document,easily operate and convenient.
Technical Paramter1015
|
Model |
SK1015 |
|
Working area (mm) |
1000*1500*1000 |
|
Machine structure |
Channel steel lathe bed, serrated table |
|
Overall dimension (mm) |
2150*1700*1200 |
|
Precision (mm) |
0.07 |
|
Positioning accuracy (mm) |
0.02 |
|
Repeatability (mm) |
0.02 |
|
Idling speed (mm/min) |
50000 |
|
Working speed (mm/min) |
8000 |
|
XY transmission |
Racks and gears |
|
Z transmission |
Double-nut ball screws (German) |
|
Rail/guide |
Imported round rail |
|
Power source |
(HUAYUAN) 60A |
|
Max. cutting thickness |
5mm for 60A; 25mm for 100A |
|
Driving system |
Stepper motors |
|
Working voltage |
AC380V+30V, 50HZ |
|
Command code |
G code. nc. mmg. u00. etc. |
|
Control system |
DSP for plasma |
|
File transfer |
USB interface |
|
Copatible software |
Compatible with any software generating G code file in window 98/XP/7 |
|
Optional parts |
1.American Hypertherm power supply 2.100A 3.Servo motor 4.Air compressor |
Technical Paramter1325
|
Model |
SK1530 |
|
Working area (mm) |
1500*3000*100 |
|
Machine structure |
Channel steel lathe bed, serrated table |
|
Overall dimension (mm) |
3650*2400*1200 |
|
Precision (mm) |
0.07 |
|
Positioning accuracy (mm) |
0.02 |
|
Repeatability (mm) |
0.02 |
|
Idling speed (mm/min) |
50000 |
|
Working speed (mm/min) |
8000 |
|
XY transmission |
Racks and gears |
|
Z transmission |
Double-nut ball screws (German) |
|
Rail/guide |
Imported round rail |
|
Power source |
(HUAYUAN) 60A |
|
Max. cutting thickness |
5mm for 60A; 25mm for 100A |
|
Driving system |
Stepper motors |
|
Working voltage |
AC380V+30V, 50HZ |
|
Command code |
G code. nc. mmg. u00. etc. |
|
Control system |
DSP for plasma |
|
File transfer |
USB interface |
|
Copatible software |
Compatible with any software generating G code file in window 98/XP/7 |
|
Optional parts |
1.American Hypertherm power supply 2.100A 3.Servo motor 4.Air compressor |
