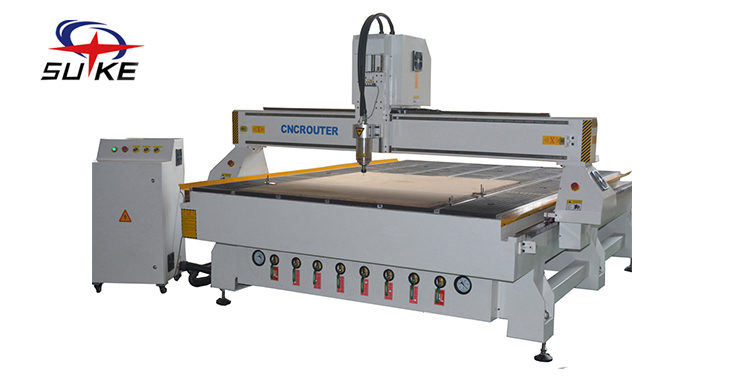

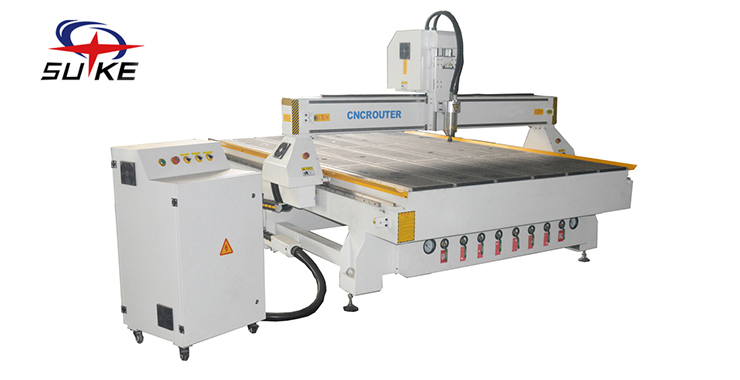

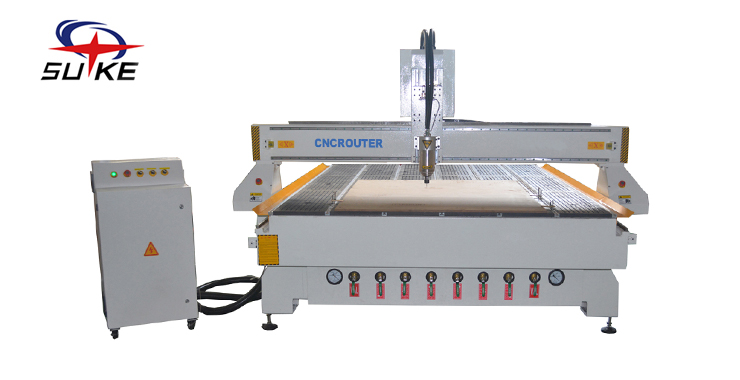

Product Features:
1. Whole lathe bed is in steel structure of high stability.
2. Racks and gears transmission with high-speed motor keeps smooth movement in fast and accuracy.
3. Breakpoint restoring function enable the machine continue to work after sudden stop, such as accident, tool breaking.
4. Wide software compatibility with processing files generated by Type 3,ArtCAM,Artcut,AutoCAD,JDPaint etc. CAD/CAM design software.
Technical Parameters
|
Model |
SK2030 |
|
Working area (x*y*z) |
2000*3000*600mm |
|
Machine structure |
Steel structure lathe bed and T-slot of sectional material |
|
Work holding |

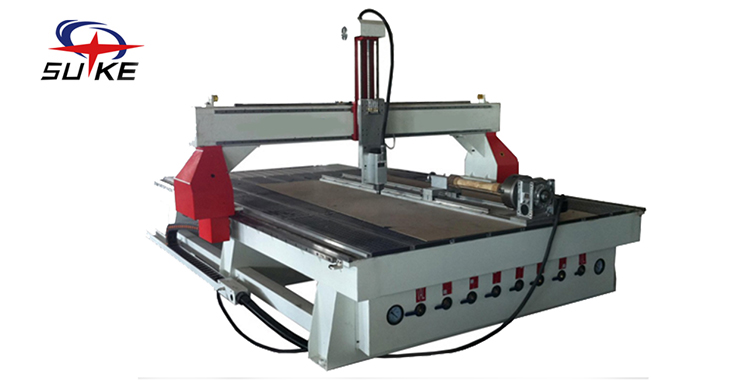

By clamps and Rotary |
|
X Y movement |
Rack and gears |
|
Z movement |
Ball screw (German) |
|
Guide/rail |
Square rail/Taiwan HIWIN |
|
Precision (mm) |
0.07 |
|
Positioning accuracy (mm) |
0.02 |
|
Repeatability (mm) |
0.02 |
|
Idling speed (mm/min) |
28000-32000 |
|
Working speed (mm/min) |
15000 |
|
spindle |
3kw Air Cooling |
|
Available tools (mm) |
ɸ3.175~ɸ12.7 |
|
Drive system |
Stepper motors |
|
Working voltage |
AC220V+30V,50HZ |
|
Command code |
G code (*.nc,*.mmg, 8.u00, etc.),*.eng |
|
Control system |
DSP |
|
Compatible software |
Compatible with any software generating G code file in window 98/XP/7 |
|
Optional parts |
1. Square tube lathe bed. 2. by vacuum 3. Automatic tool changer 4. Servo motors 5.Tool cooling system with sink |
