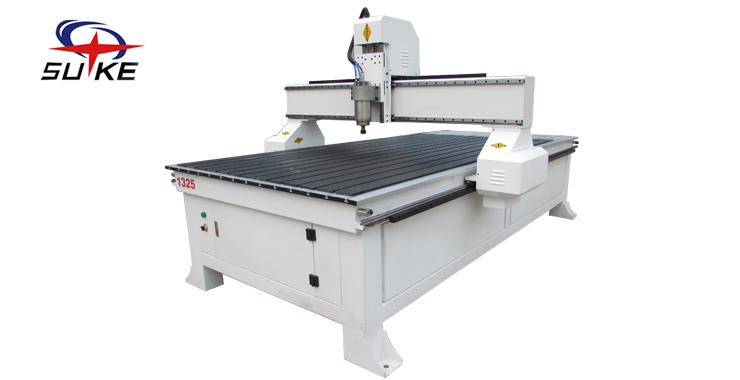

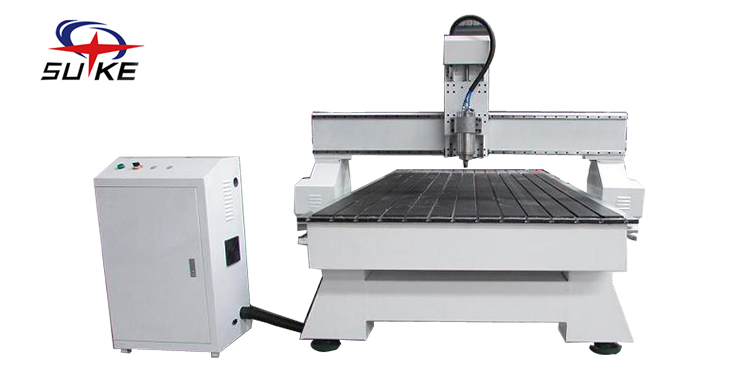

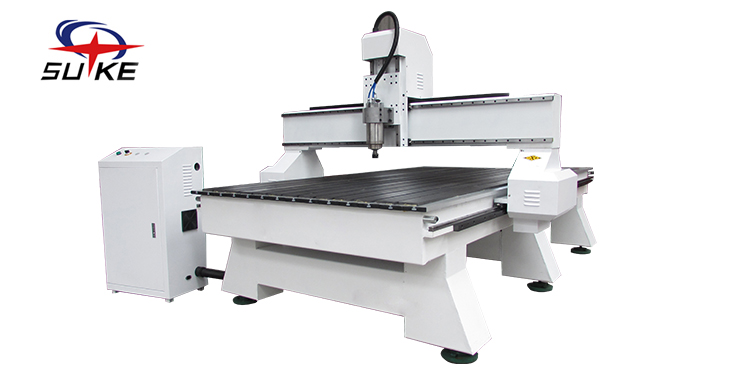

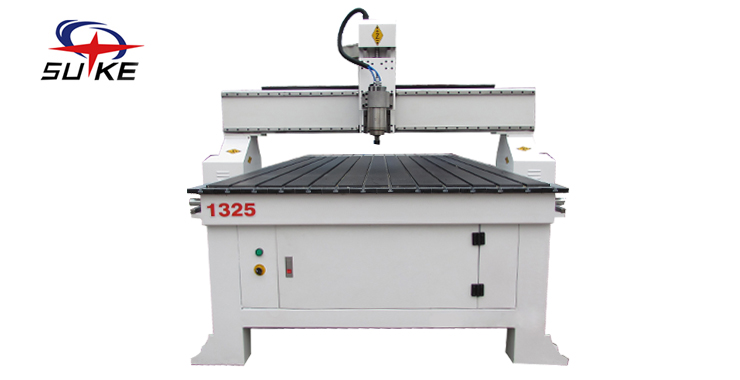

Features of 1325 cnc router cutting
1. The cnc router machines’ body is strong, rigid, high precision, reliable and durable.
2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
4. High-performance driven motor to ensure that the machines high speed and accuracy.
5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.
6. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
7. Compatible with several CAD/DAM designing software,
Technical Parameters
|
Working area: |
1300x2500x200mm |
|
Spindle type: |
China water cooling spindle |
|
Spindle power |
3.0 kw |
|
Spindle rotating speed |
0-24000rpm |
|
Power (except spindle power) |
4.8KW (include powers of: motors, drivers, inverters and so on) |
|
Power supply: |
AC380±10, 50 HZ |
|
Worktable: |
Vacuum table |
|
Locating precision: |
<0.01mm |
|
Min shaping character: |
Character:2x2mm,letter:1x1mm |
|
Operating temperature: |
5°C-40°C |
|
Working humidity |
30%-75%(without condensed water) |
|
Working precision |
±0.03mm |
|
System resolution |
±0.001mm |
|
Control configuration: |
Mach 3 control system |
|
Data transfer interface: |
USB |
|
System environment: |
windows 7 |
|
Spindle cooling way: |
Water cooling |
|
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
|
Compatible software |
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares…. |
|
Cutting thickness: |
0-40mm also (depends on different material) |
|
Z tool censor: |
yes |
|
Whole machine dimension: |
3170x2070x1800mm |
|
Net weight: |
1300KG |
|
Gross weight |
1450KG |
|
packing |
Plywood case (veneer wood case for export) |
|
Optional parts |
|
|
1. air cooled type spindle |
|
|
2. Bigger or smaller power spindles (6kw or 2.2 kw) |
|
|
3. High-grade cooling system (chiller, it has alarming system) |
|
|
4. double-head or more heads |
|
|
5. servo motors (China brand or Japan brand) |
|
|
6. Auto tool change system |
|
|
(this system need other systems accordingly, like LNC control system, servo motors etc) |
|
|
7. DSP Control system ,or Mach 3 |
|
|
8. other customerized features. |
