Laser machine parts can engrave and cut nonmetal materials with her slim laser beam. While CNC router can cut big thickness by her high power.

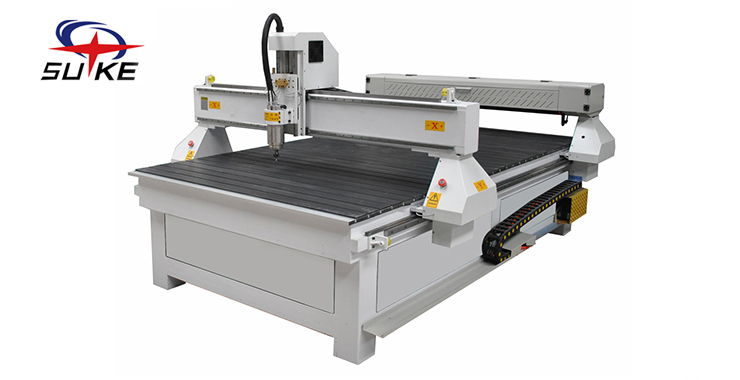

CNC router Part
|
Technical Parameter |
|
|
Model |
SK1325 |
|
Working area (x*y*z) |
1300*2500*200mm |
|
Vacuum system |
Steel Structure lathe bed and T-slot of sectional material |
|
Work holding |
By Vacuum table |
|
X Y movement |
Rack and gears |
|
Z movement |
Ball screw/ German |
|
Guide/rail |
High precision Square rail, 20mm width |
|
Precision (mm) |
0.07 |
|
Positioning accuracy (mm) |
0.02 |
|
Repeatability (mm) |
0.02 |
|
Idling speed (mm/min) |
20000 |
|
Working speed (mm/min) |
15000 |
|
spindle |
3 kw air cooling (0-18000rpm) |
|
Available tools (mm) |
Φ3.175~Φ12.7 |
|
Motors |
Stepper motor |
|
Driver |
Leadshine 860 |
|
Working voltage |
AC220V±30V, 50HZ |
|
Command code |
G code (*.nc,*.mmg, 8.u00, etc.),*.eng |
|
Control system |
DSP system |
|
Software |
ArtCam/ Wentai software |
|
Auto lubrication system |
Yes |
|
Y axis |
Double motor for Y axis |
|
Compatible software |
Compatible with any software generating G code file in window 98/XP/7 |
Laser machine part
|
Technical Parameter |
|
|
Model |
SK1325 |
|
Working area(mm) |
1300mm*2500mm |
|
Laser tube power |
Reci Z6 (130w-160w) |
|
Working life of tube |
10000 hours for Reci laser tube |
|
Engraving speed |
0 - 60,000mm/min |
|
Cutting speed |
0 - 30,000mm/min |
|
Resetting positioning accuracy |
0.01mm |
|
Laser tuber cooling |
Water cooling |
|
Max power |
About 1kw |
|
Machine control |
DSP controlling |
|
Working platform |
Honeycomb table or knife table |
|
Power supply |
AC 110 - 220V , 50 - 60Hz |
|
Min. shaping character |
Chinese 2mm*2mm,English 1mm*1mm |
|
Supported graphic |
BMP, PLT, DST, DXP, and AI |
|
Driving system |
Stepper motor |
|
Assistant equipment |
Exhaust-fans, CW5200 Chiller, air pump |
|
Software supported |
CorelDraw, AutoCAD , Photoshop |
|
Software |
Laser works |
