Features:

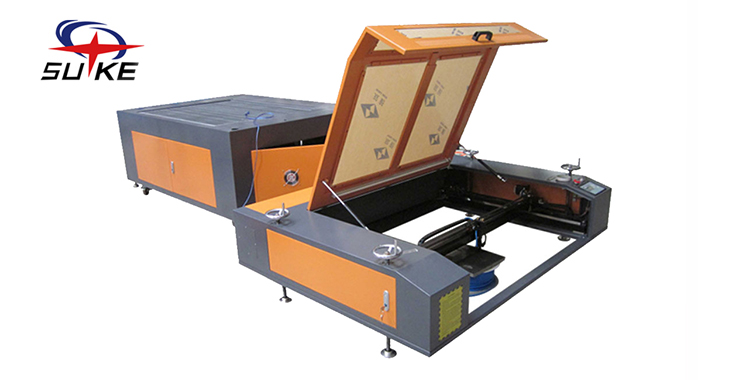

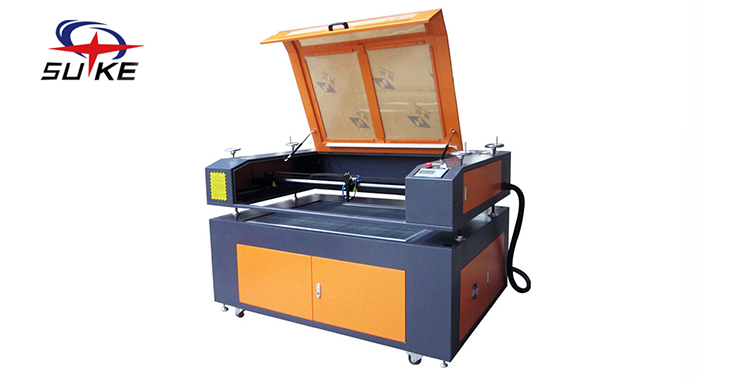

1. This machine adopt up and down separated structure design, the upper of the machine can be moved, the lower part of the machine can be matched the corresponding platform according to the customers’ requirments.
2. For the heavy materials, can move the upper of the machine onto the materials to engrave, such way can avoid carry the heavy materials onto the machine, sloving the bearing capacity problem of platform.
Application Field:
Applicable materials: wood, bamboo, organic glass/plexiglass, crystal, plastic, garments, paper, leather, rubber,ceramic, glass and other nonmetal materials
Applicable industries: advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging,paper industry
Model |
SK1215 |
Working area(mm) |
1200*1500mm |
Laser tube power |
80w,100w(optional) |
laser tube type |
Sealed CO2 laser tube/ or Reci laser tube, water-cooling, 10.6um |
Working life of tube |
1500hours for CO2 laser tube; 10000 hours for Reci laser tube |
Max Engraving speed |
0 - 60,000mm/min |
Cutting speed |
0- 30,000mm/min |
Location precision |
<0.01mm |
Resetting positioning accuracy |
0.01mm |
Resolution ratio |
<0.01mm |
Laser tuber cooling |
Water cooling |
Power supply |
AC 110 - 220V , 50 - 60Hz |
Min. shaping character |
Chinese 2mm*2mm,English 1mm*1mm |
Supported graphic |
BMP, HPGL, PLT, DST, DXP, and AI |
Driving system |
Stepper motor |
360° slope engrave |
Yes |
Cooling system |
Water-cooling and protection system |
Operating system |
Windows98/ME/2000/XP/VISTA/2007 |
Standard accessories |
(01)laser engraving cutting software --laser cut 5.3(English version) (02)User manual of machine(English version) (03) User manual of software (04)USB cable (05)communication cable (06) air exhaust fan (07)air pump (08)3 reflecting mirrors (has been installed in the machine) (9)one focus lens(has been installed in the machine ) (10)one laser tube(has been installed in the machine) (11) tool box that you need to repair or maintenance (12) USB port LED panel(has been installed in the machine) |
EXTRA PARTS |
(1) an extra laser tube (2) motorized up and down platform (3) rotary attachment (4) red dot printer (5) industrial chiller cw5000 (6) auto focus (7) 3 layer filter |
Software supported |
CorelDraw, AutoCAD , Photo shop |
Operating temperature |
0°C~45°C |
Operating humidity |
5%~95% |
Gross power |
≤1000w |
Computer interface |
USB port and Standard printer port |
English manual |
Tell you how to run the laser machine and also the problems and solutions |
