Advantage:

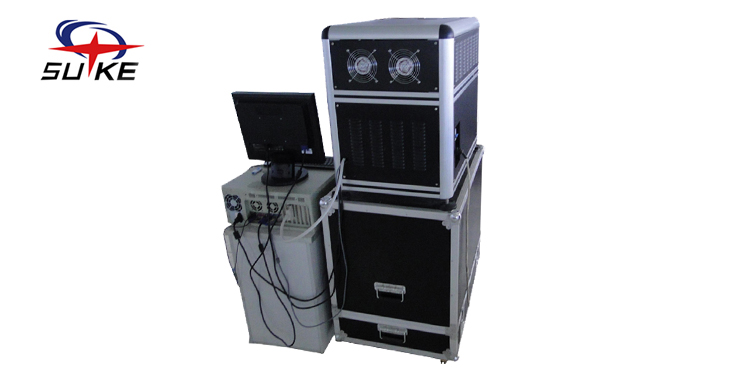

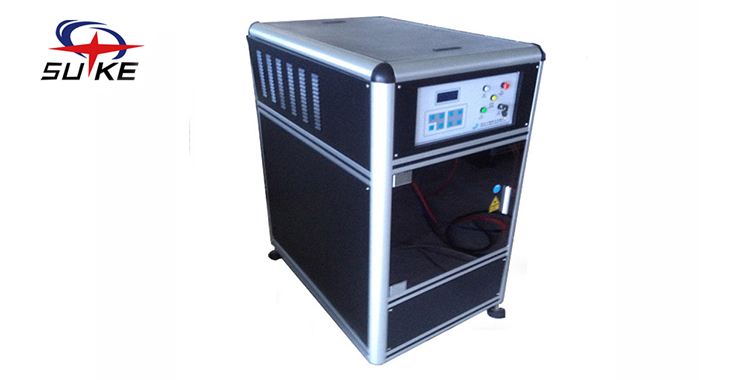

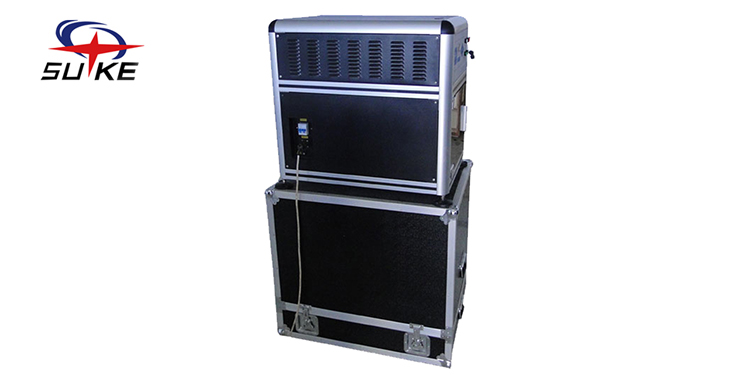

SK602A Rapid Scanner Laser Subsurface Engraving Machine adopts the advanced galvanometer scanner technology together with 2 KHz diode-pumped YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively. The key parts of the apparatus mainly come from Germany and the USA. It is more reasonable and steady for long-term production. This machine has the software developed independently connected with 3D Camera what can fine engrave 3D portrait. The smaller size and lighter weight can be carried and fixed easily, and the protective package can keep the machine well. This machine is suitable for individual production and batch fast process. Just one machine could be satisfied with capacity for both storefronts network distribution and electric-business distribution.
Model |
SK-602A |
Laser medium |
YAG |
Laser wavelength |
532nm (green laser) |
Max. pulse energy |
1mJ(0.5mJ) |
Max. laser power |
2W |
Frequency |
2000 Hz |
Pump source |
Diode/USA |
Pump source lifetime useful life |
20000hours |
Original place of
Laser medium |
German |
F-theta lens(mm) |
German F:160 |
Laser heads |
1 |
Resolution (DPI) |
800-1200 |
Engraving speed (dots/min) |
100,000-140,000/min |
Working way |
1 scanner |
Drive System |
servo motor ( Japan) |
Engraving range(mm) |
100*100*100 F-theta lens 160 |
Engraving time |
558 crystal(400,000points) About 2.5 min. |
Engraving time |
321keychain(140,000ponits) About 1 min. |
Repeated location accuracy |
5μm |
Continuous working time |
>12hours |
Power consumption |
1KW |
Cooling way |
Air Cooling/ Water cooling |
Power supply |
220V or 110V±10% 50Hz or 60Hz |
Warranty |
1 year |
Machine dimension (mm) of Whole machine(mm) |
550 ×580×700 |
Total Weight (kg) |
120( machine 80KG with package, Camera 40KG with package) |
Computer |
CPU:P4 2.8G, Memory 1G,Harddisk 80G,17”LCD |
Software |
Laser photo, Laser image, Laser control (The software is developed by lead laser) |
Circumstance temperature |
15-30℃ |
Relative humidity |
<75% |
