3D Inner Laser engraving machine for crystal - 3D Laser Engraving Machine

Function:

SK-603A Rapid Scanner Laser Subsurface Engraving Machine is used to engrave 2D, 3D images or individual figures in crystal and glass products. It could work for a large scale production of 2D, 3D animals & plants, architectures, models such as car, boat, airplane etc, and 3D scene show.

Advantage:

SK-603A Rapid Scanner Laser Subsurface Engraving Machine adopts the advanced galvanometer scanner technology together with 3KHz diode-pumped YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively. The key parts of the apparatus mainly come from Germany and the USA. It is more reasonable and steady for long-term production. This machine has the software developed independently connected with 3D Camera what can fine engrave 3D portrait. The smaller size and lighter weight can be carried and fixed easily, and the protective package can keep the machine well. This machine is suitable for individual production and batch fast process. Just one machine could be satisfied with capacity for both storefronts network distribution and electric-business distribution

Model	SK-603A
Laser medium	YAG
Laser wavelength	532nm (green laser)
Max. pulse energy	1.2mJ(0.5mJ)
Max. laser power	3W
Frequency	3000 Hz
Pump source	Diode/USA
Pump source lifetime useful life	20000hours
Original place of Laser medium	German
F-theta lens(mm)	German F:160
Laser heads	1
Resolution (DPI)	800-1200
Engraving speed (dots/min)	140,000-180,000/min
Working way	1 scanner
Drive System	servo motor ( Japan)
Engraving range(mm)	140100100 F-theta lens 160
Engraving time	558 crystal(400,000points) About 2.5 min.
	321keychain(140,000ponits) About 1 min.
Repeated location accuracy	5μm
Continuous working time	>24hours
Power consumption	1KW
Cooling way	Air Cooling
Power supply	220V or 110V±10%/50Hz or 60Hz
Warranty	2 years
Machine dimension (mm) of Whole machine(mm)	550 ×580×700
Total Weight (kg)	120( machine 80KG with package, Camera 40KG with package)
Software	Laser photo, Laser image, Laser control (The software is developed by lead laser)
Circumstance temperature	5-35℃
Relative humidity	<75%
Training time	3 days
Laser class laser	4
Laser class system	1
Remark	This quotation included 1 set engraving system, one operating computer for machine, carry metal box for machine, operating software installed in the computer, more than 2000pcs 2D/3D images data installed, free training at our side, whole life maintenance and technological support, manual and spare parts.

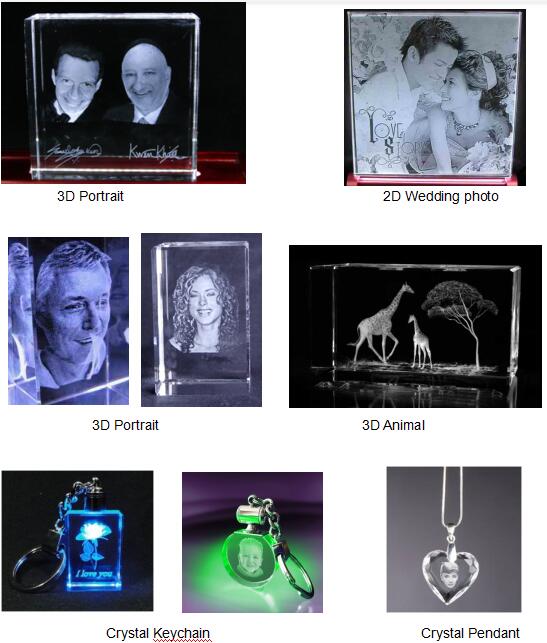

Same Photo:
