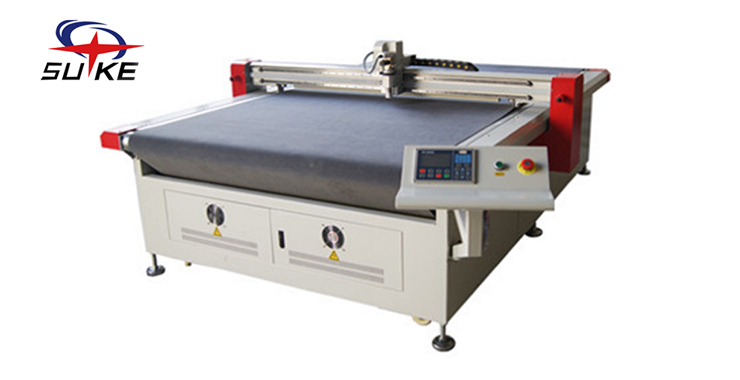

Automatic Fabric Cutting Machine Applicable Industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
Perfect Cutting Automatic Fabric Cutting Machine Features :
1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
2. The high precision CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.
3. The anti-collision and the built-in auto-sensing devices ensure the security of cnc oscillating knife leather cutting machine.
4. High efficiency can be realized without making a high-cost knife model.
5. The high precision CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
|
Model |
SK1625 |
|
Working area |
2500×1600mm |
|
Machine size (mm) |
3550×2800×1220 |
|
Vacuum pump power |
9KW |
|
Fixed mode |
flat plate table |
|
Multifunctional head |
Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function. |
|
Tool configuration |
Multiple cutting knives |
|
Safety device |
Using infrared sensors, responsive, safe and reliable. |
|
translational velocity |
800-1200mm/s |
|
Cutting speed |
400-800mm/s(according to different cutting materials) |
|
Cutting thickness |
≤20mm(according to different cutting materials) |
|
Cutting materials |
Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber |
|
Repeated accuracy |
≤0.1mm |
|
Capacity |
2GB |
|
Transmission system |
imported(Digital servo motor, linear guide, synchronous belt, ball screw) |
|
Instruction system |
HP-GL compatible format |
|
Voltage |
380V±10% |
|
Other configuration |
Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table,auto feeding, Taiwan Hiwin rail, 7.5kw vacuum pump |
