Applicable of Furniture 4 axis cnc router machine
1.Woodworking industry,Wooden door, furniture and decoration; Wooden crafts making; Redwood carving, Archaized furniture.Also can used in other industry.
2.Advertising industry, double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting of acrylic and the engraving of many jade article.

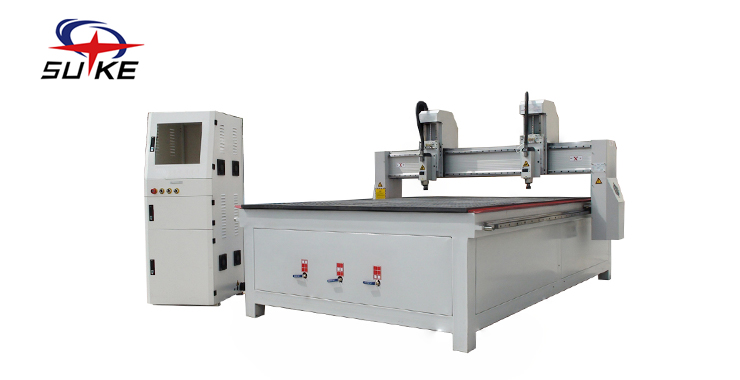

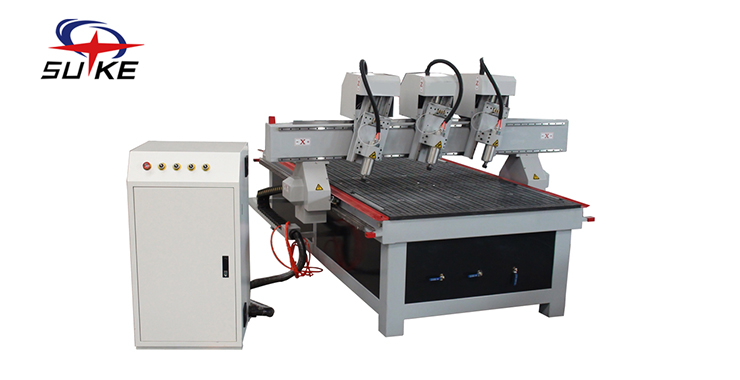

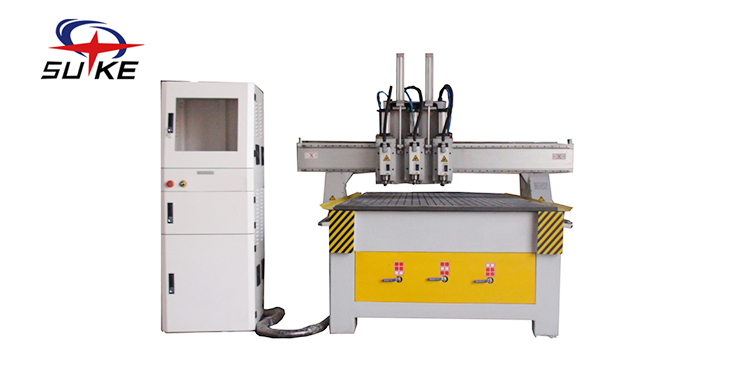

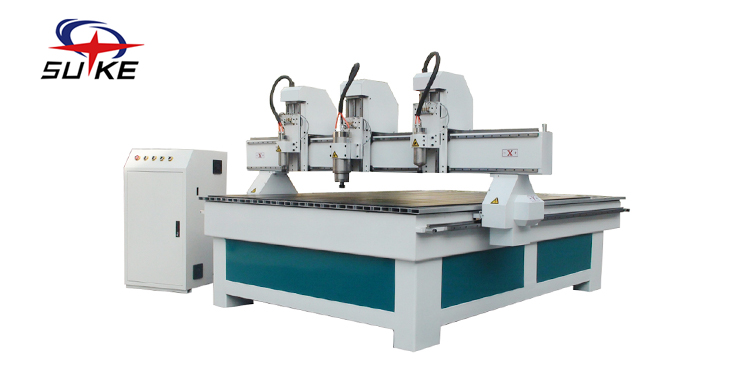

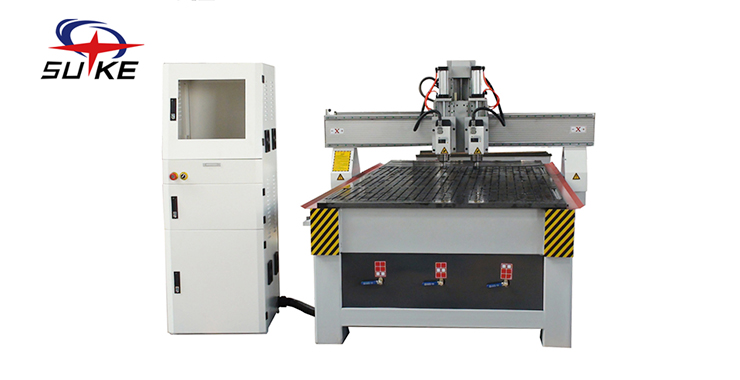

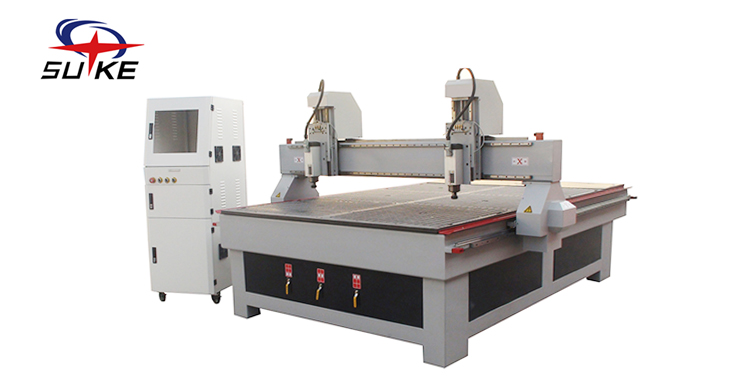

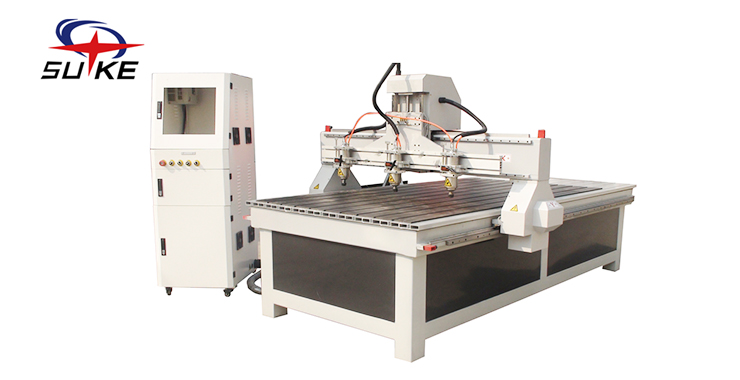

Features and parts pictures of Furniture 4 axis cnc router machine
1. The cnc router machines’ body is strong, rigid, high precision, reliable and durable.
2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
3. cnc router using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
4. High-performance driven motor to ensure that the machines high speed and accuracy.
5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.
6. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
7. Compatible with several CAD/DAM designing software,
|
Working area: |
1300x2500x200mm |
|
Spindle type: |
China water cooling spindle |
|
Spindle power |
2.2 kw |
|
Spindle rotating speed |
0-24000rpm |
|
Power (except spindle power) |
4KW (include powers of: motors, drivers, inverters and so on) |
|
Power supply: |
AC380±10, 50 HZ |
|
Worktable: |
Vacuum table |
|
Locating precision: |
<0.01mm |
|
Min shaping character: |
Character:2x2mm,letter:1x1mm |
|
Operating temperature: |
5°C-40°C |
|
Working humidity |
30%-75%(without condensed water) |
|
Working precision |
±0.03mm |
|
System resolution |
±0.001mm |
|
Control configuration: |
Mach 3 control system |
|
Data transfer interface: |
USB |
|
System environment: |
windows 7 |
|
Spindle cooling way: |
Water cooling |
|
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
|
Compatible software |
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares…. |
|
Cutting thickness: |
0-40mm also (depends on different material) |
|
Z tool censor: |
yes |
|
Whole machine dimension: |
3170x2070x1800mm |
|
Net weight: |
1300KG |
|
Gross weight |
1450KG |
|
packing |
Plywood case (veneer wood case for export) |
|
Optional parts |
1. air cooled type spindle 2. Bigger or smaller power spindles 3. High-grade cooling system (chiller, it has alarming system) 4. less or more heads 5. servo motors (China brand or Japan brand) 6. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc) 7. DSP Control system ,or Mach 3 8. other customerized features. |
