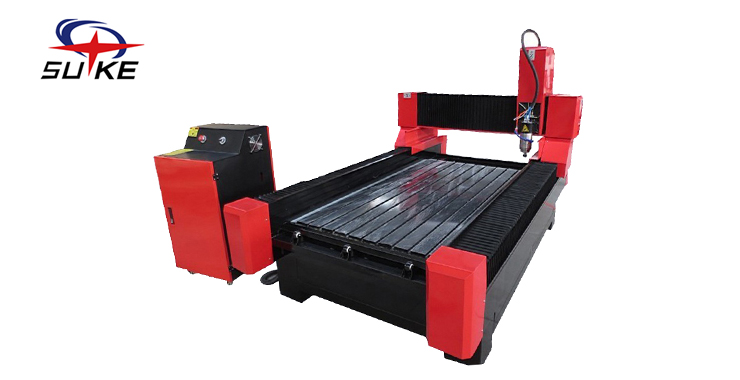

Introduction for CNC stone milling engraving carving machine metal cnc machine :
Suke stone carving machine can engrave letter or patterns on natural granite, marble,
bluestone, crystal stone, rock quartz, crystal stone, microlite, all kinds of artificial stone,
glass, village tablet, tombstone, milestone, decorating baseboard etc., Can make
protuberant carving and hollow carving. Engraving depth can reach 200mm. gh quality good price CX9020 3d cnc router stone engraving machine
Features for CNC stone milling engraving carving machine metal cnc machine :
1.machine structure is simple, pragmatic, clean appearance.
2.Machine Table adopts heavy and thick steel, which improve load-bearing of the whole machine,it can bear 3 ton heavy stone
3.Machine sides use heavy steel, it can reduce vibration during work, then improve processing accuracy
4.Gear wheel for X Y axis, ball screw are uncovered, so it is very easy to clean it, after work, ball screw can be cleaned for many times.
Description |
Parameter |
|||
|
SK-9015 |
SK-1325 |
SK-2040 |
Option |
Working Area (X*Y*Zmm) |
900*1500*200 |
1300*2500*200 |
2000*4000*200 |
Customized |
Body structure |
Steel tube welded |
|||
X, Y Structure |
rack and pinion drive |
|||
Z structure |
Ballscrew |
|||
Max Moving Speed |
20000mm/min |
|||
XYZ repositioning accuracy |
0.05mm |
|||
Spindle Speed |
0-24000rpm |
|||
Spindle power |
3.0kw/4.5kw watercooling |
|||
voltage |
AC220V/50Hz |
|||
Drive motor |
Steppter/option servo motors |
|||
Command language |
G code,HPGL |
|||
Control system |
NC-Stuido/option DSP |
|||
Software Compatibility |
Type3, Ucancam,Artcam Software |
