Features:

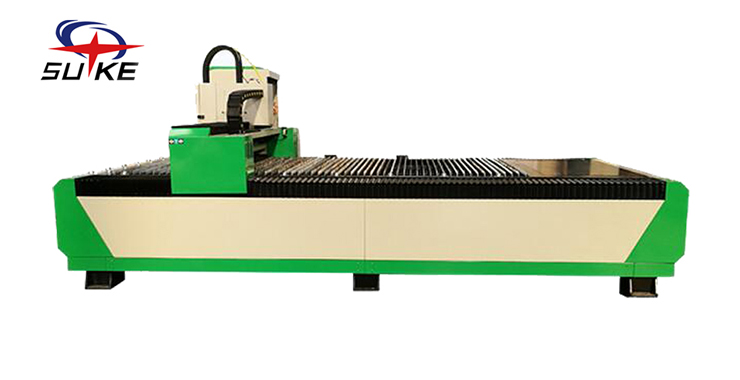

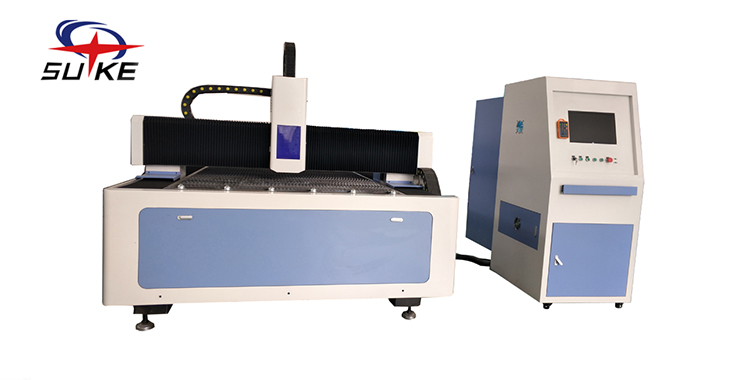

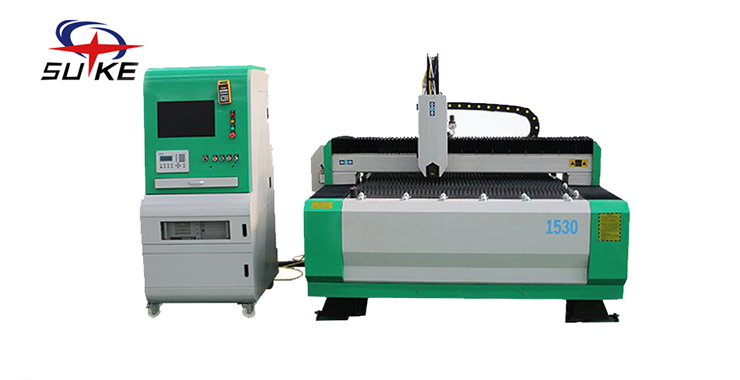

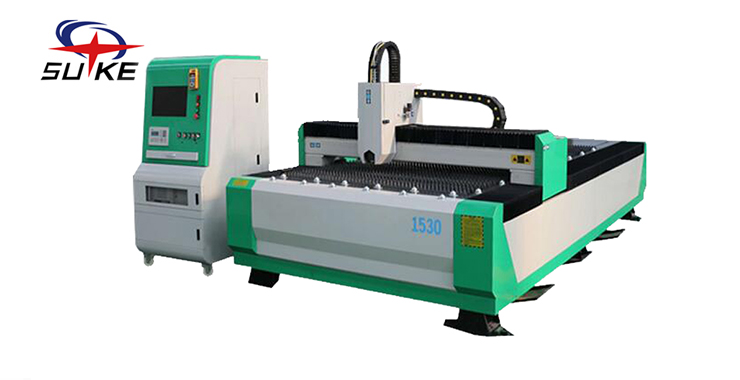

1.SK-1530 fiber laser cutting machine adopts IPG laser device which has international advanced laser technology.
2.Equipped with efficient transmission system by Japan high-precision gear rack after grinding process and high-precision linear guide.
3.Advanced automatic Cypcut control system, group into high precised CNC fiber laser cutting machine.
Applicable:
Mainly applicable for carbon steel, stainless steel, mild steel and aluminum alloy etc such metals’ cutting and molding.With advantage of High speed, High precision, High efficiency and High cost performance. This model is metal processing industry’s first considering metal cutting machine.
Machine Model |
F-1530 |
Max. working area |
1500mm x 3000mm |
Laser source |
IPG 1000watts fiber laser |
laser head |
Raytools cutting head or China WSX head |
Control system |
Cypcut system |
Cutting thickness |
0.5-12mm metals |
Laser wavelength |
1080 nm |
Rated power |
10-100% |
Water chiller power |
4 Kw |
X,Y-axis location accuracy |
±0.02mm |
X,Y-axis repeat location accuracy |
±0.02mm |
X,Y-axis fast moving speed |
100m/min |
X,Y-axis max. cutting speed |
45m/min |
Min. cutting line width |
0.02-0.08 mm |
Max platform bearing |
1000 KGS |
Machine weight |
4000 KG |
Voltage |
380V, 50HZ |
Max total power |
10-20KW/hour |
