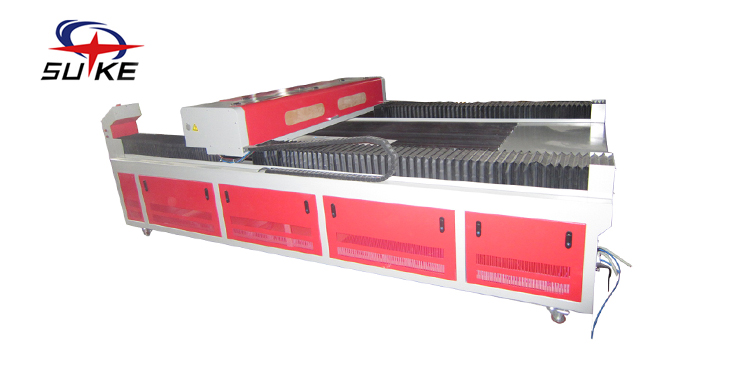

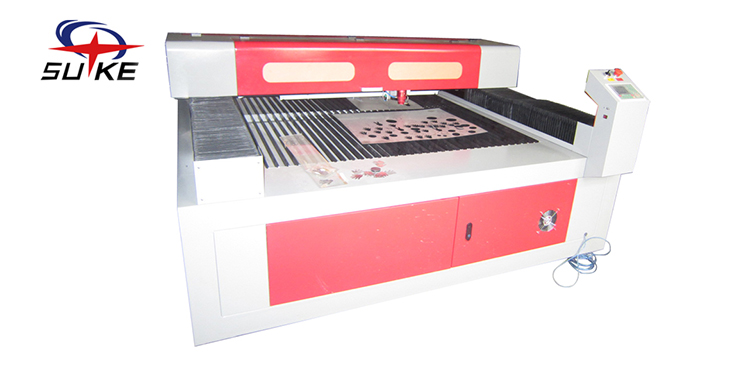

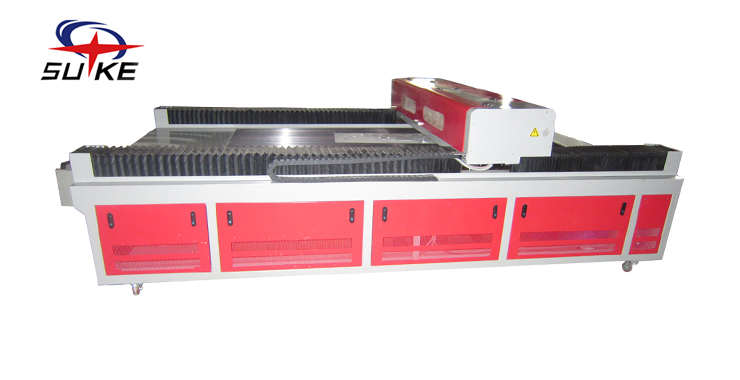

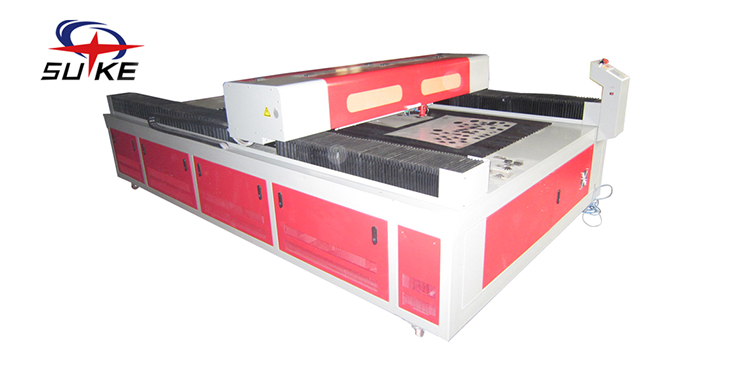

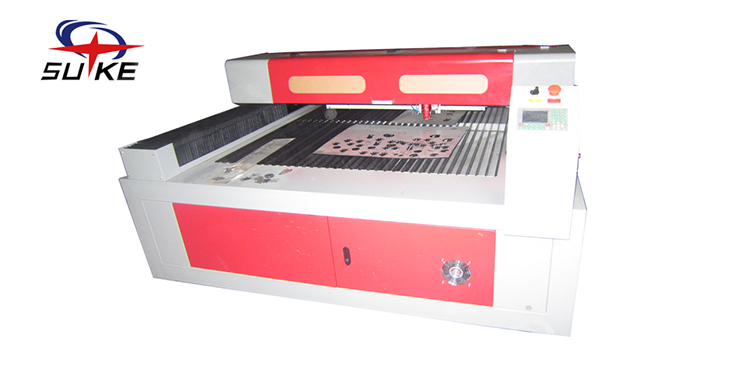

Metal & Nometal Laser Cutting Machine

Service Hotline：+86-18668923691 Online Ordering

Presentation

Main introduction
1. 1300*2500mm working area
2. Honeycomb table / Knife table
3. Reci 130w -160wlaser tube with 10000 hours service time, 10months warranty.(Can cut 1.5mm stainless steel and 30mm acrylic )
4. USB port. LCD panel, offline cooperation
5. Chiller CW5200 to extend laser tube service time.
6. AC110-220V 50-60hz 10% voltage
7. Plug Common/ European/ America
8. 1 year warranty term for laser machine.
9. CE & FDA certificate
10. Detailed user manual and Video in English. Technical support for free during lifespan.

Optional part:
-Multi-heads
-Motorized up & down platform
-Rotary axis

parameter

Reci 150w Reci tube cutting thickness

Acrylic sheet	25-30mm
Stainless steel	1.5mm
For other non-metal materials, please be free to contact us! Skype: sukelaser5

Technical Parameter

Model	SK1325
Work area	1300*2500mm
Work table	Knife table
Laser power	Reci 130w -160w
Laser tube lifespan	10000 hours
Chiller	CW5000/CW5200
Software	Laser works
Compatible Software	CORELDRAW/PHOTOSHOP/AUTOCAD
Supported File Format	DST/PLT/BMP/DXF/AI
Engraving speed	0-60000mm/min
Cutting speed	0-30000mm/min
Machine size	305190106 cm
Packing volume	11 CBM
Gross weight	1200KG
Warranty term	1 year for machine 10 months for laser tube 3 months for ordinary laser tube 6 months for chiller
After-sales service	Lifespan technical support for free
