Model

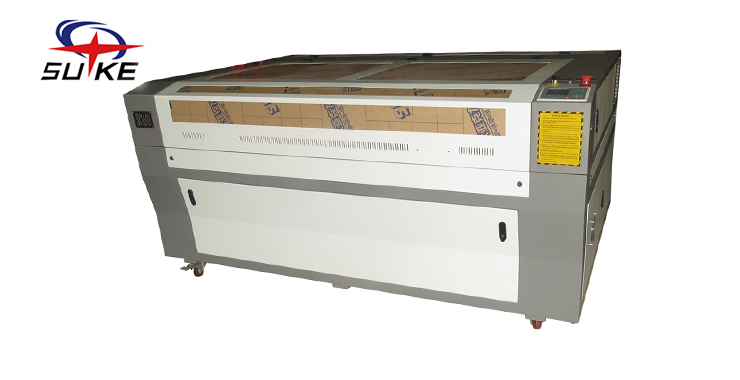

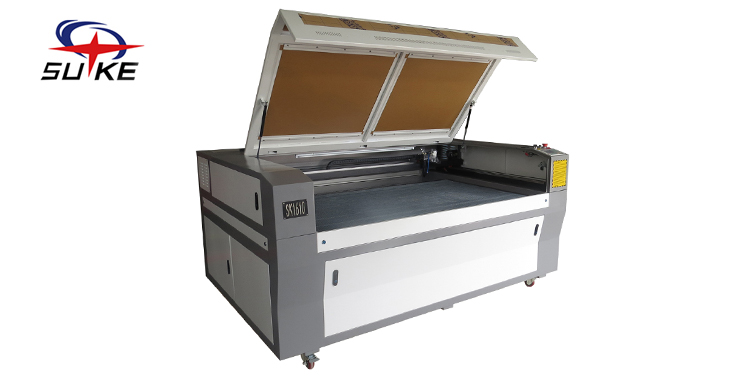

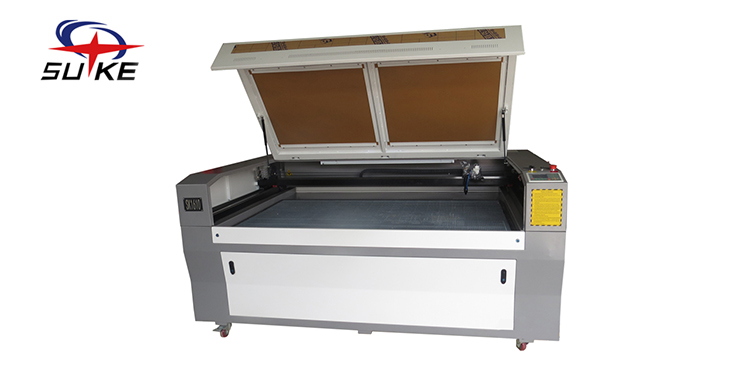

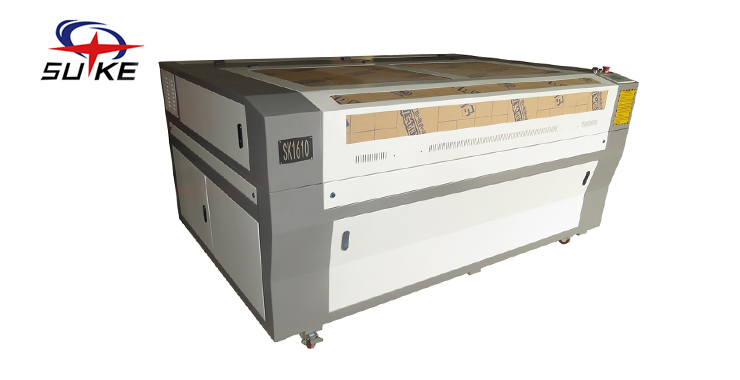

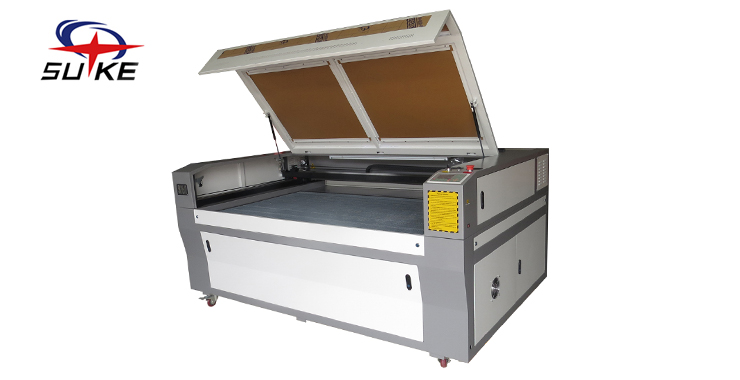

Laser cutting machine SK1610

Working area

1600*1000mm

Laser tube power

60W/80W/100W/130w/150w

Laser tube type

Sealed CO2 laser tube, water-cooling, 10.6um

Life of laser tube

1500 hours

Max Engraving speed

0-60000mm/min

Cutting speed

0-30000mm/min

Cutting thickness

1-20mm acrylic (others determined by the material )

Resolution ratio

<0.01mm

Location precision

<0.01mm

Min shaping character

Chinese 2*2mm,English1*1mm

Support graphic format

DST, PLT, BMP.HPGL,DXP and AI

Software supported

CorelDraw, AutoCAD, Photoshop

Power supply

AC110-220V 50-60HZ

Operating temperature

0– 40 centigrade degrees

Operating humidity

5%-95% Free of condensed water

Interface

USB

Assistant equipment

Exhuast-fans, water pump, air pump

Driving system

stepper

Control system

DSP

Consuming power

<1,500W

Net weight

580kgs

Gross weight

600kgs

Package size

212*171*130cm
