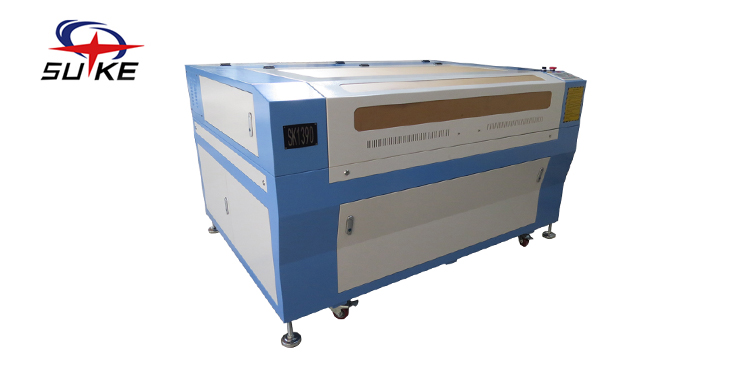

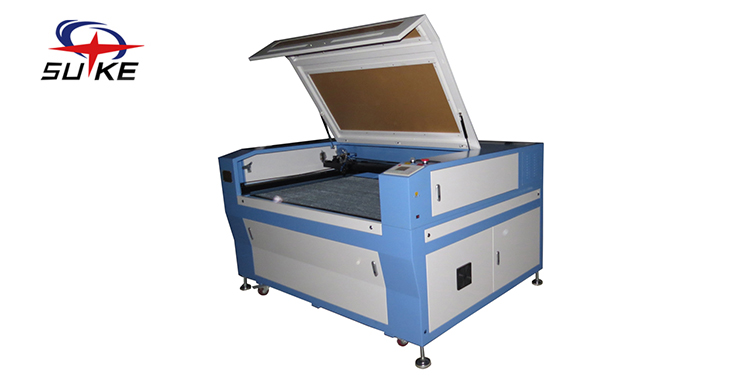

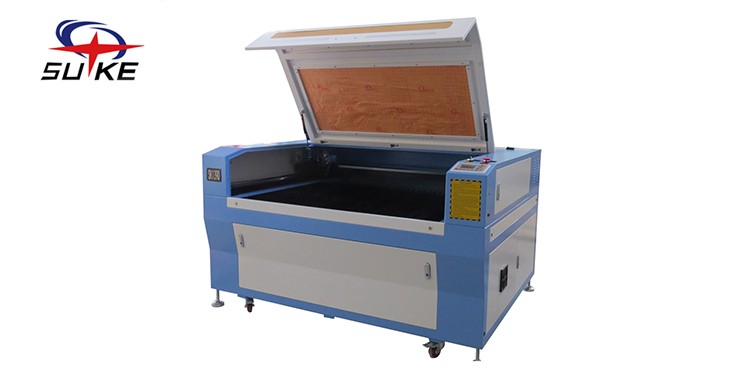

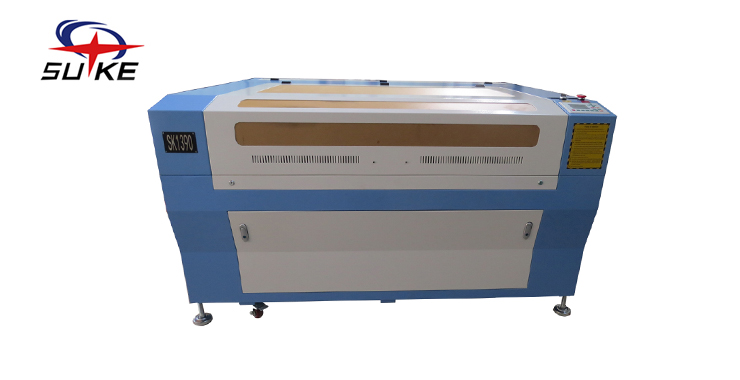

1390 Laser Cutting Machine
Service Hotline:+86-18668923691 Online Ordering

Appliacble Materials:

Our laser machine is suit for wood , die board, MDF ETC hard wood cutting works, cutting thickness 1-3cm.It also suit for fabrics, label, paper boards, leather, embroidery, acrylic ,wooden plates and paper ware etc non-metal material.

Applicable Industries:

Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Features:

1. Front and rear hole to pass long materials

2. Modern design and beautiful appearance

3. Use imported Taiwan Hiwin linear guide, more durable and high precision

4. Water protection switch ,safety switch and limit switch

5. Adopt DSP control system, and USB offline operation, LCD screen

Model

SK1390

Working Area

1300*900mm

Laser tube power

40w/60w/80w/100w (can be optional)

Laser tube type

Sealed CO2 laser tube, water-cooling, 10.6um

Lift of laser tube

1500 hours or 10000 hours optional

Max. engraving speed

0-60000mm/min

Cutting speed

0-30000mm/min

Cutting thickness

1-20mm acrylic (determined by the material)

Resolution ration

<0.01mm

Location precision

<0.01mm

Min. shaping character

Chinese 2*2mm, English 1*1mm

Support graphic format

DST, PLT, BMP, HPGL, DXP, and AI

Software supported

CorelDraw, Auto CAD, Photoshop

Power supply

AC110-220v, 50-60HZ

Operating temperature

0-40 centigrade degrees

Operating Humidity

5%-95% free of condensed water

Interface

USB

Assistant Equipment

Exhaust fans, water pump, air pump

Driving system

stepper

Control system

DSP

Consuming power

<1000w
