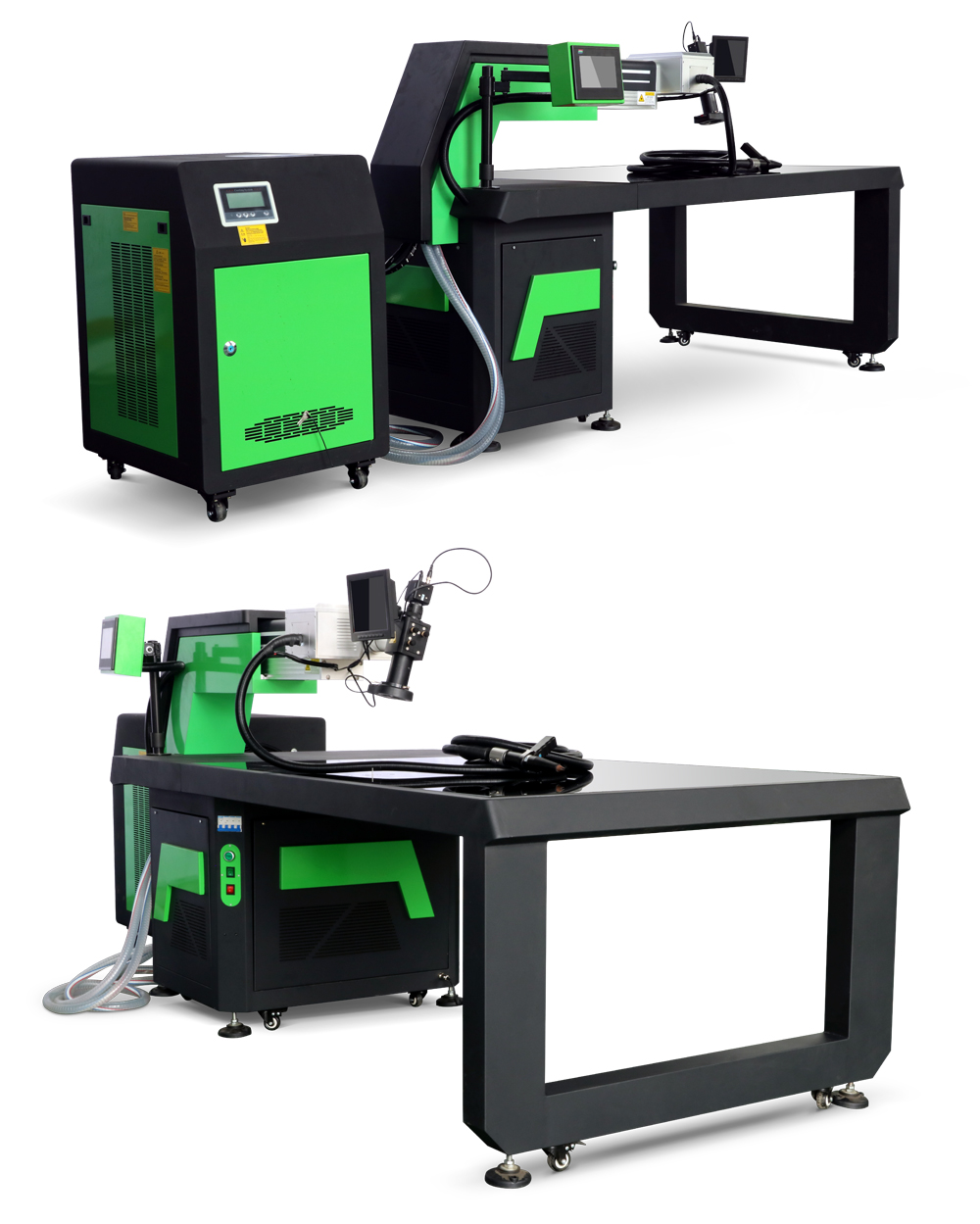

Machine Features:
1. Used super tempered glass working table.About 12mm thickness,with explosionproof film and paint,flat and smooth.
2. Used CCD micro monitor, the welding effect is clear.
3. Specially-made moving optical path, flexible, extending focusing lens F = 200MM
4. Easy operation: Men and women all can work, high efficiency, starting up can use directly, welding speed is 5 times than the traditional technology.
5.Laser head easy to adjust,the vertical stroke can up to 210mm.
Machine Parameter:
Model |
SK-500W-H |
Laser Power |
500W |
1064mm |
|
Laser Type |
YAG |
Mono Pulse Max Power |
90J |
Spot Size |
0.2-3mm |
Cooling Method |
2P Chiller |
Welding Depth |
0.1-3.2mm |
Observation System |
Option CCD+Red Light |
Laser Vertical Stroke |
200mm |
Machine Power |
Max 14.4KW |
Voltage |
380V50HZ3P |
Working table size |
1200*2050mm |
HanSKeld tube length |
5m |

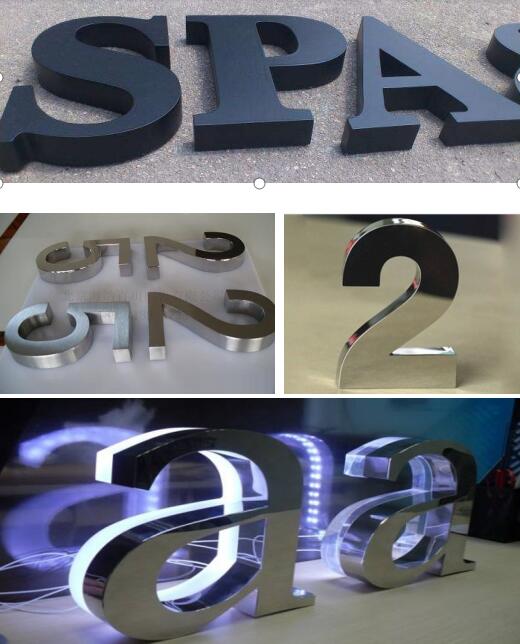

Sample Photo:
