Product Description:

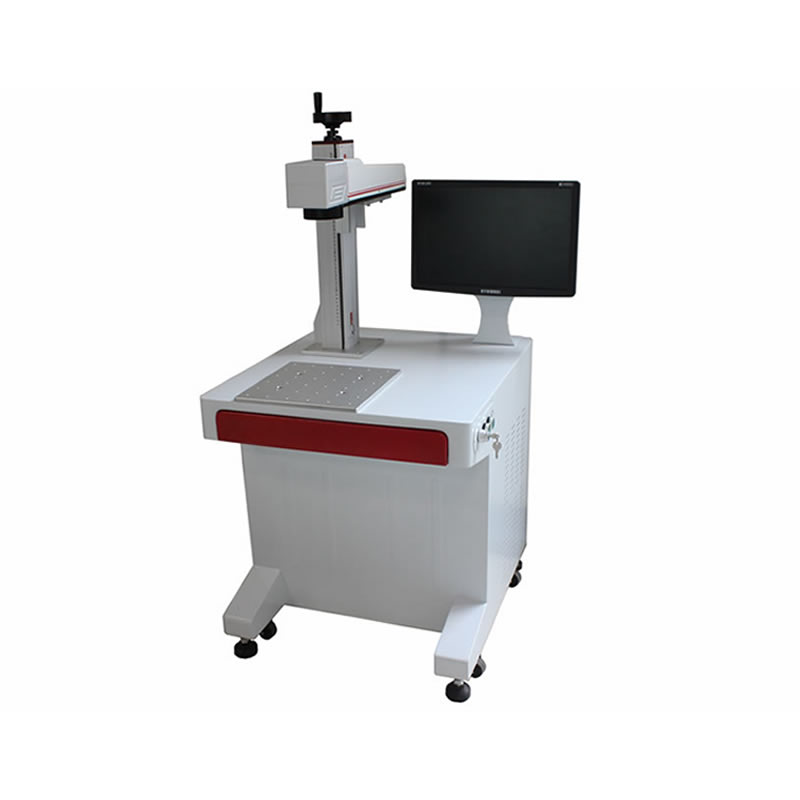

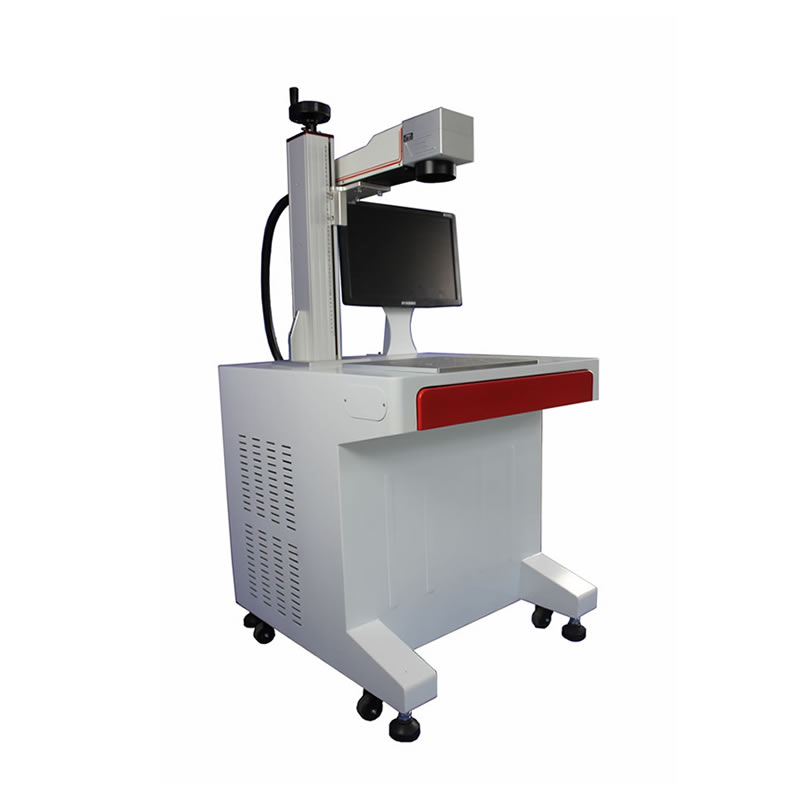

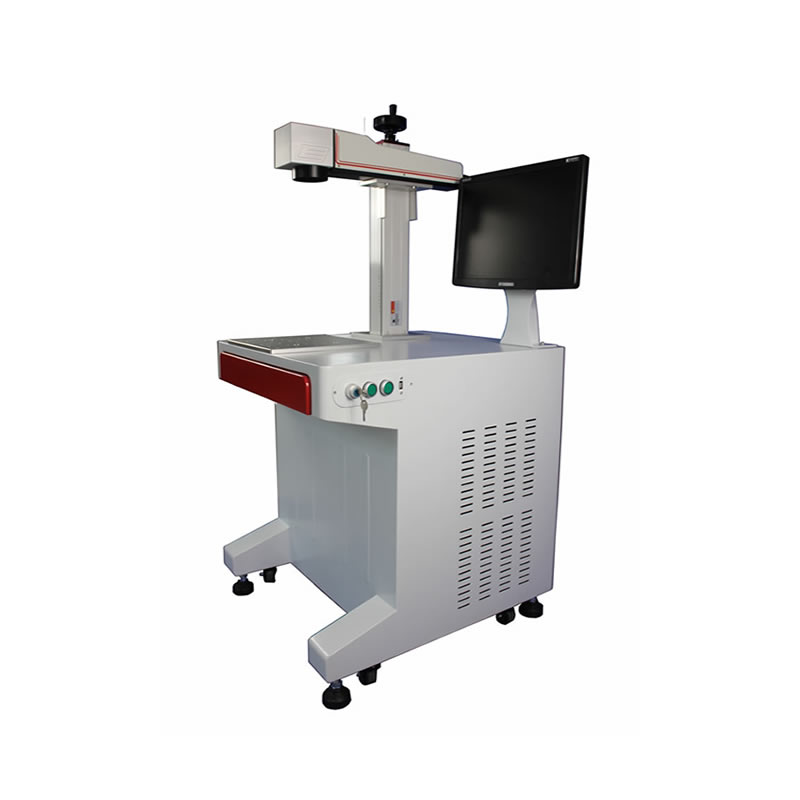

Wood Co2 Laser Marking Machine features long work lifespan, 24 Hous continuous work, high accurancy and cost effectiveness. The equiptment is of without any consumption and with small power, high efficiency, its marking area can ba large and clear enough, as well as not easy to worn and of high efficiency. With reasonable and whole structure design, better stability and higher reliability.
It is widely used in wood, craft, gifts,electronic components, clothing, leather, food packaging and other industries. Adopted the imported CO2 laser, its beam is of superior quality, stable light and low failure rate. Coordinated with the excellent servo motor, the high-speed scanning galvanometer is of high marking speed and precision. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.
|
Specification |
RF30W RF60W |
|
Wave length of laser |
10.6μm |
|
Laser repetition frequency |
≤25KHZ |
|
Laser power |
RF 30W or 60W |
|
Marking scope |
110*110 /200*200mm/300*300mm optional |
|
Marking depth |
≤0.3mm(adjustable according to materials) |
|
Laser Head |
Scanning head |
|
Linear Speed |
≤7000mm/s |
|
Min.Line Width |
0.03mm |
|
Min.Letter |
0.2mm |
|
Repeated accuracy |
±0.01mm |
|
Cooling ways |
Air cooling |
|
Power supply |
220V/ 50Hz/2kVA |
|
Process Material |
Various of nonmetal materials |
|
Support format |
PLT, BMP, DXF, JPG, TIF, AI etc |
|
Package |
Standard Crate for export |
|
Applications |
leather, wood, textiles, plastics, acrylic, glass, crystal,stone, MDF, dual-color board, organic glass, paper, jade, agate, non-metals etc. |
Sample Photo:
